Ras Alan playing his Childres OMC
with Built-in Pick-up and Mic
Photo by Ken Voltz
I like to build and play guitars.

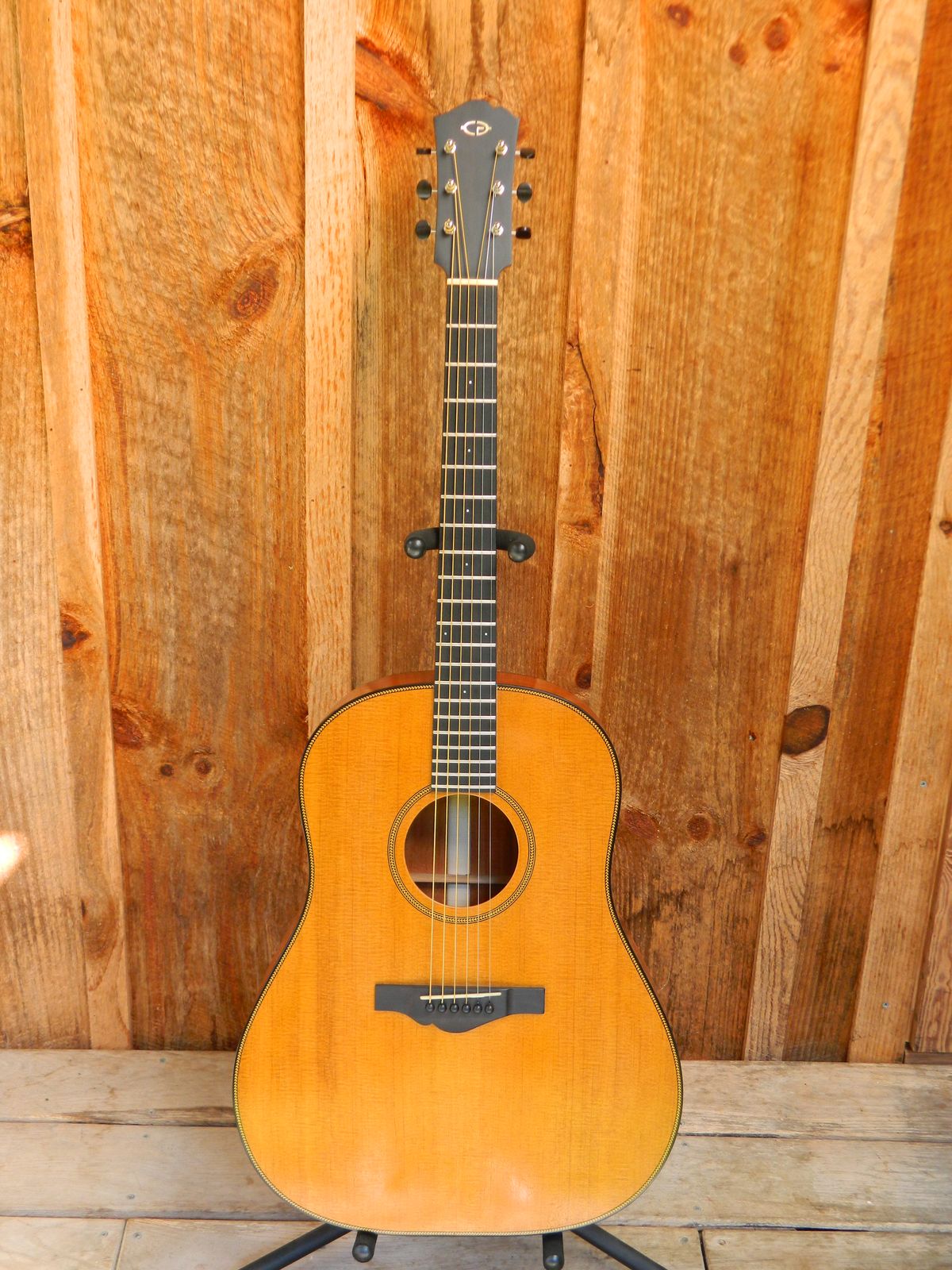

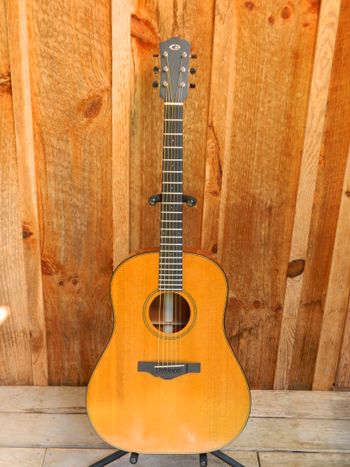

JAH 45 Mahogany #32016. AVAILABLE NOW!
Torrified Sitka spruce; ebony bridge and fretboard

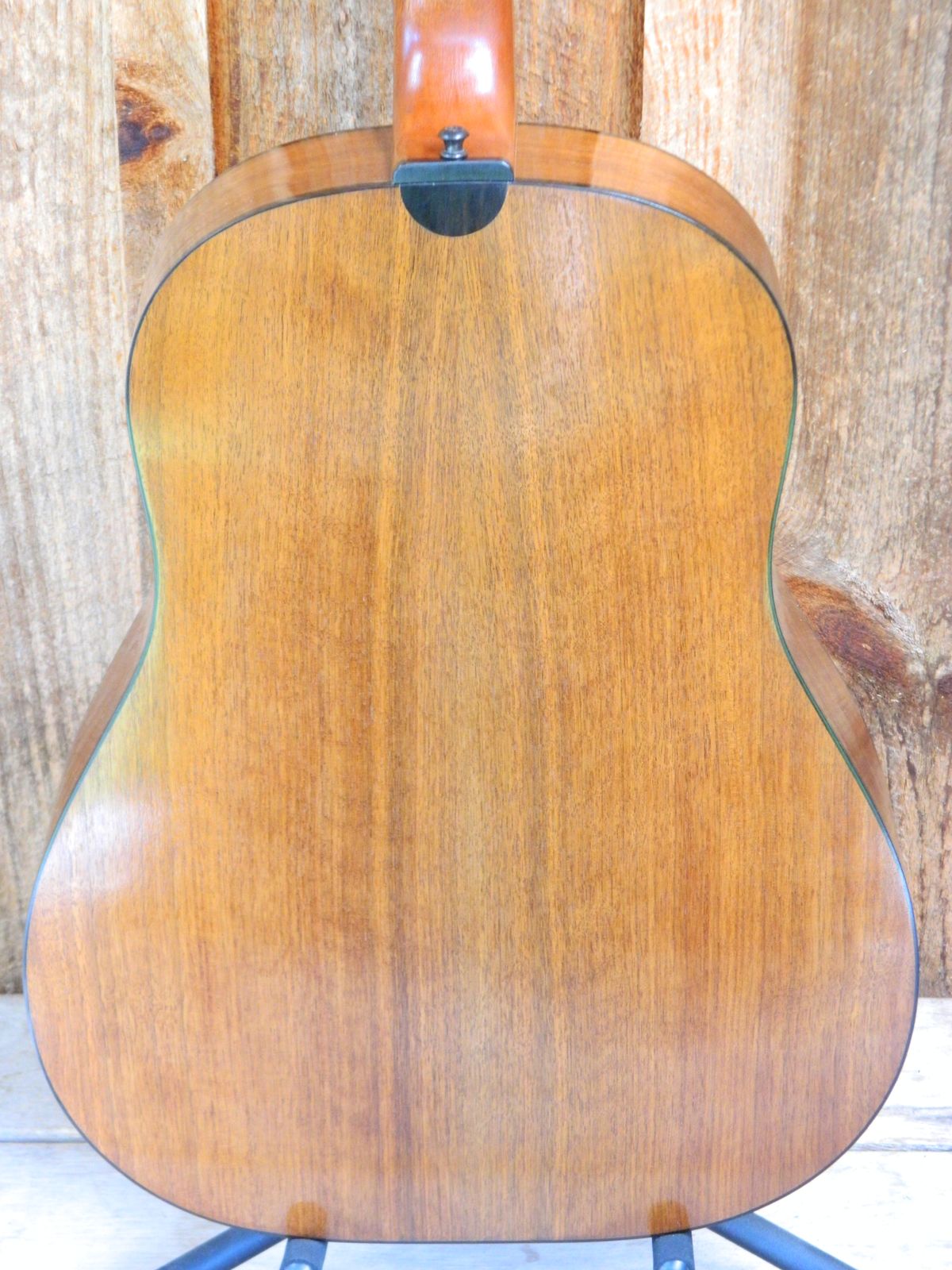

Hand thicknessed walnut back
Waverly tuners with ebony buttons

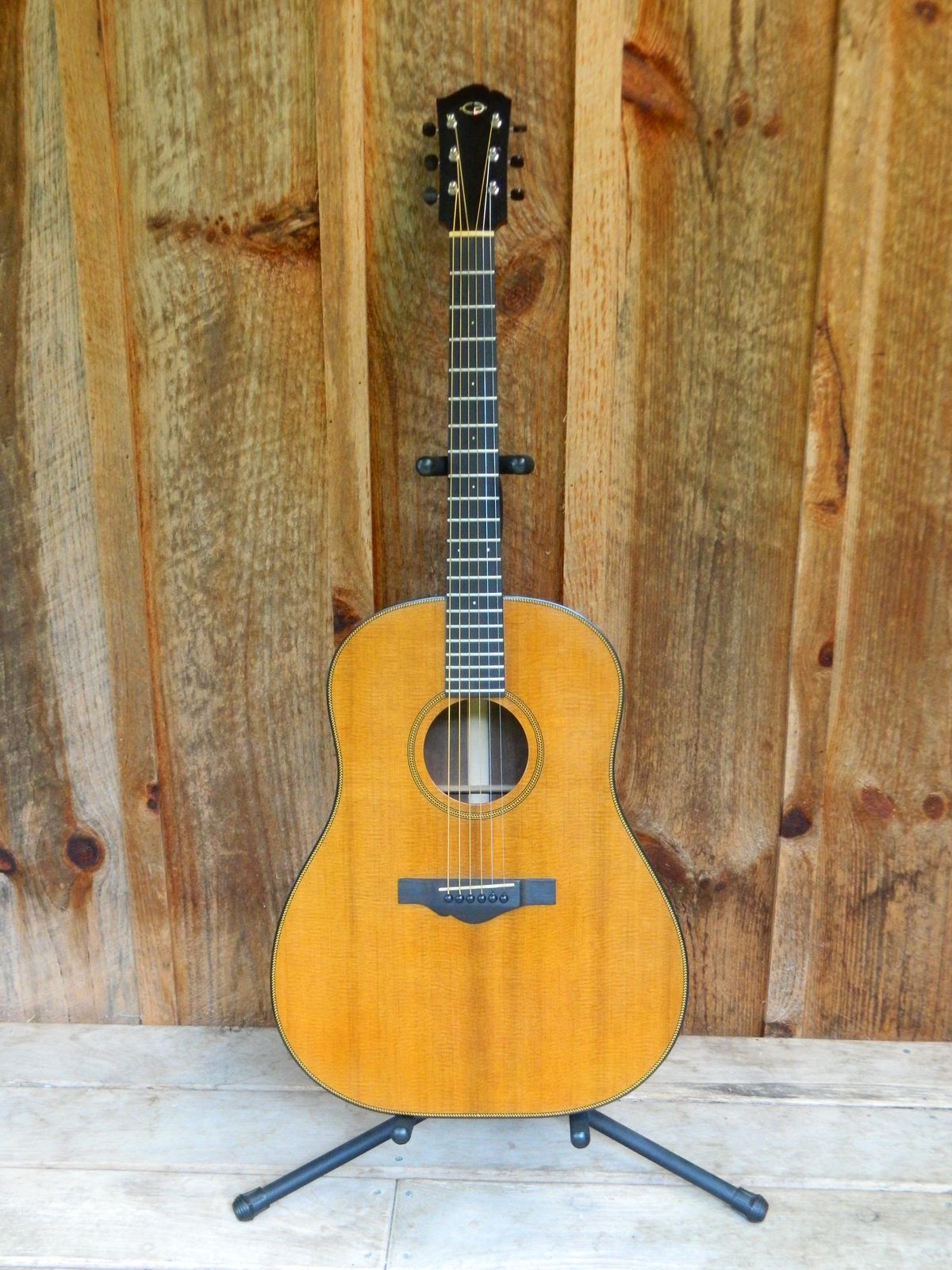

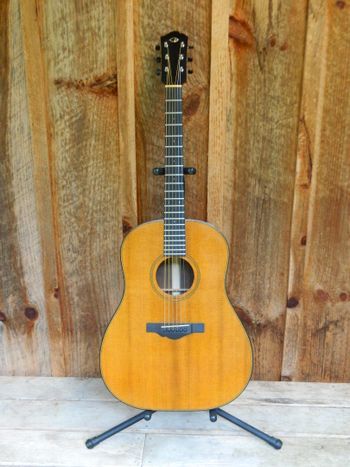

JAH 45 Walnut #22016
Ebony fretboard; Herringbone purfling
Matte finish ebony headplate

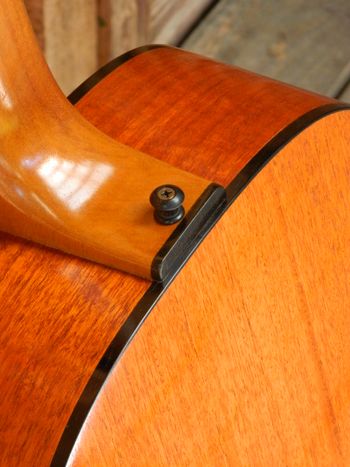

Ebony trim and button

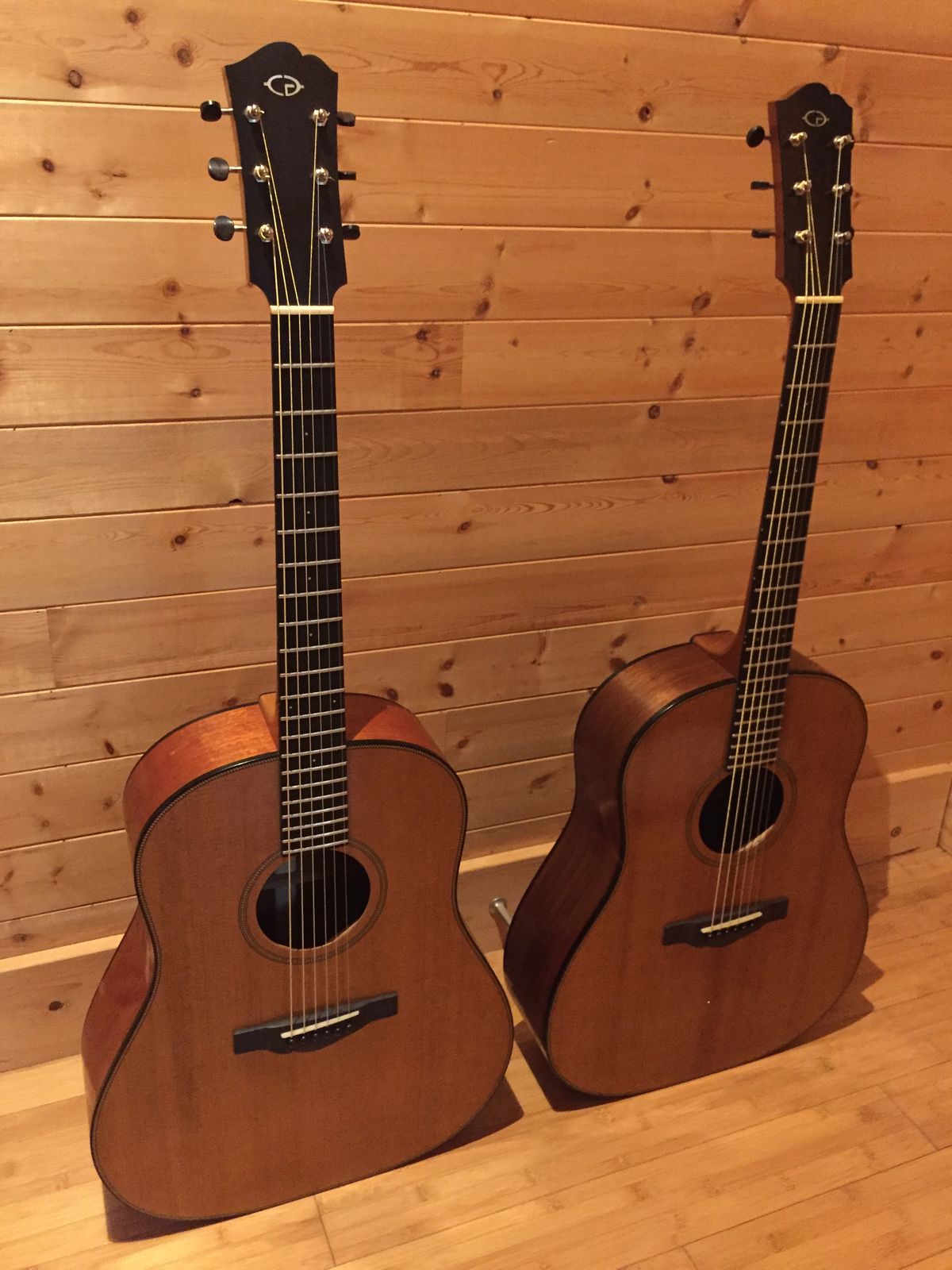

JAH 45 Mahogany and Walnut
Childres OMC #12015 For Sale (Or one like it)

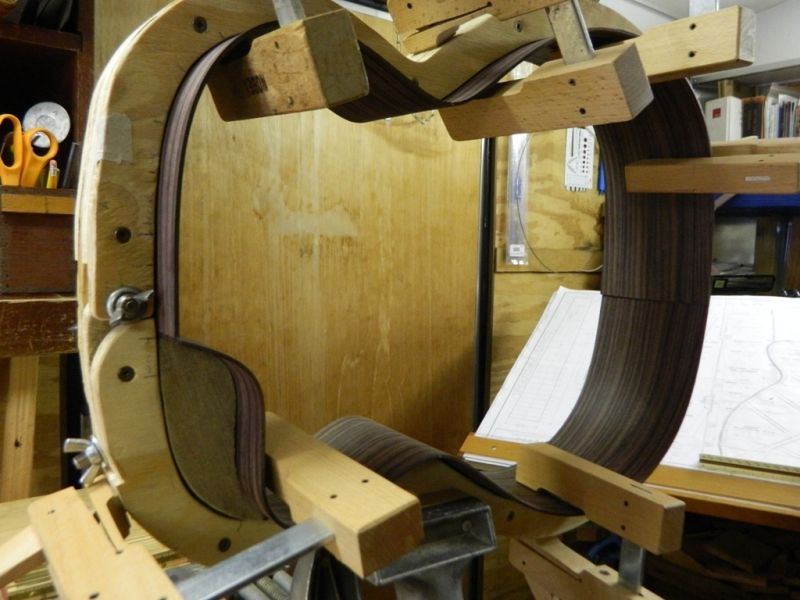

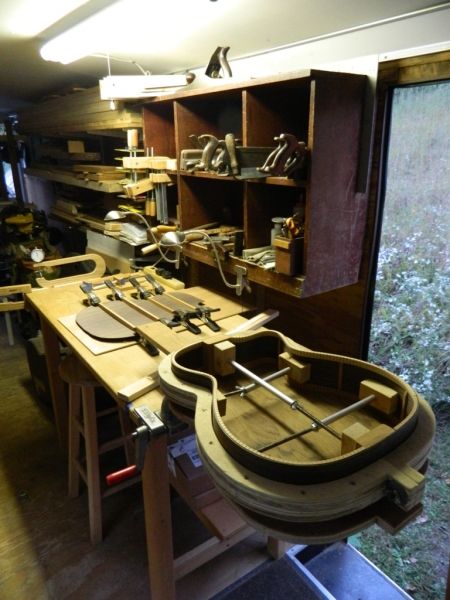

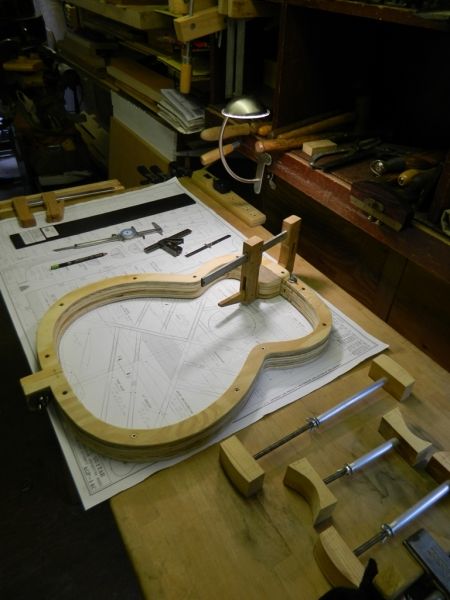

Custom OMC form and spreaders

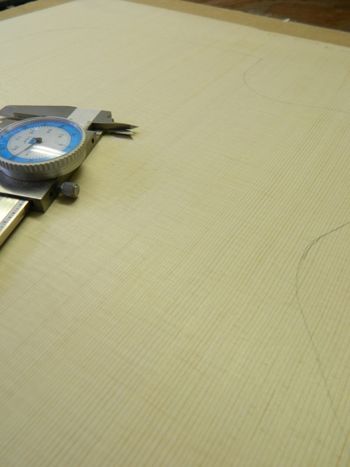

Laying out the top profile; AAA Sitka spruce

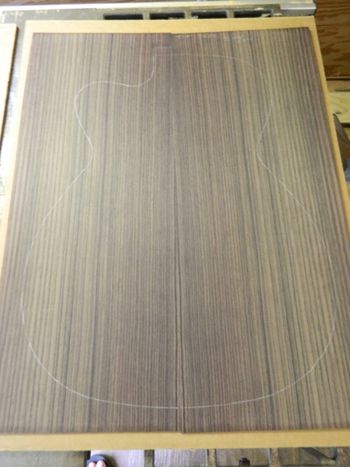

Laying out the back profile; East Indian rosewood
Measuring the sides to length

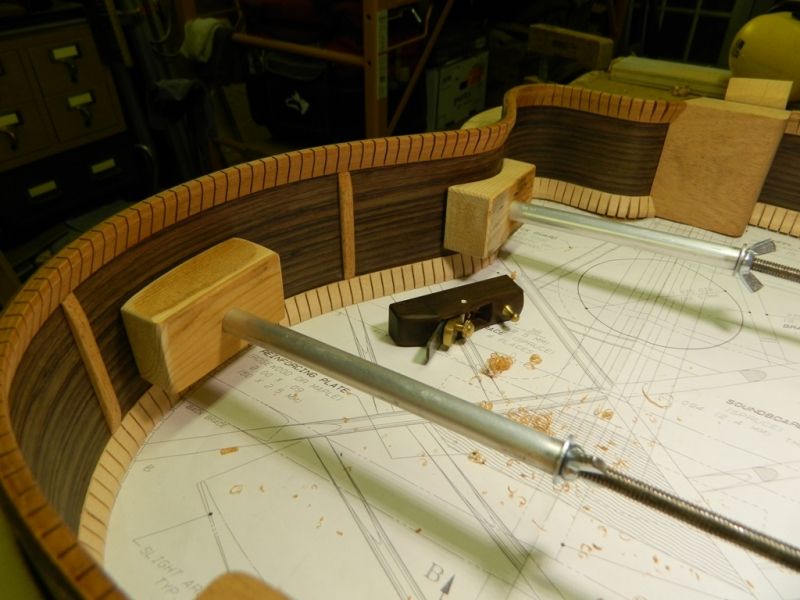

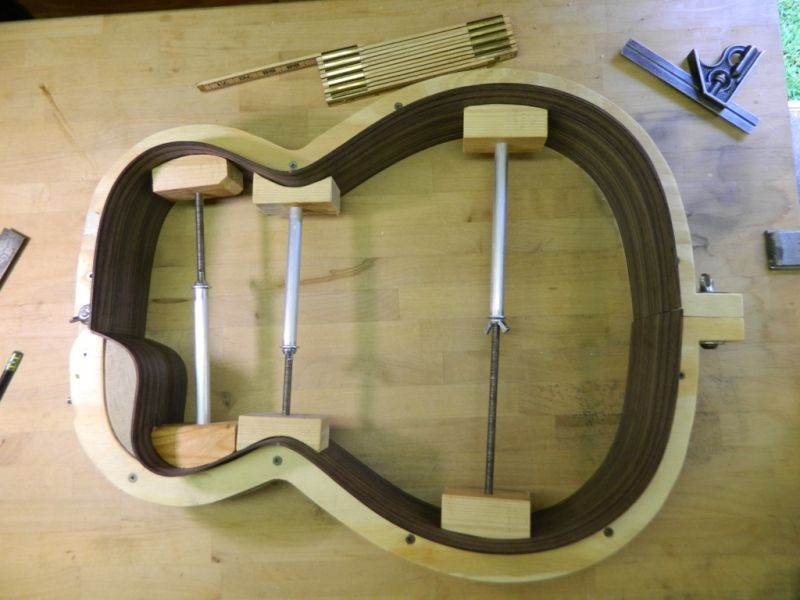

Fitting the internal spreaders

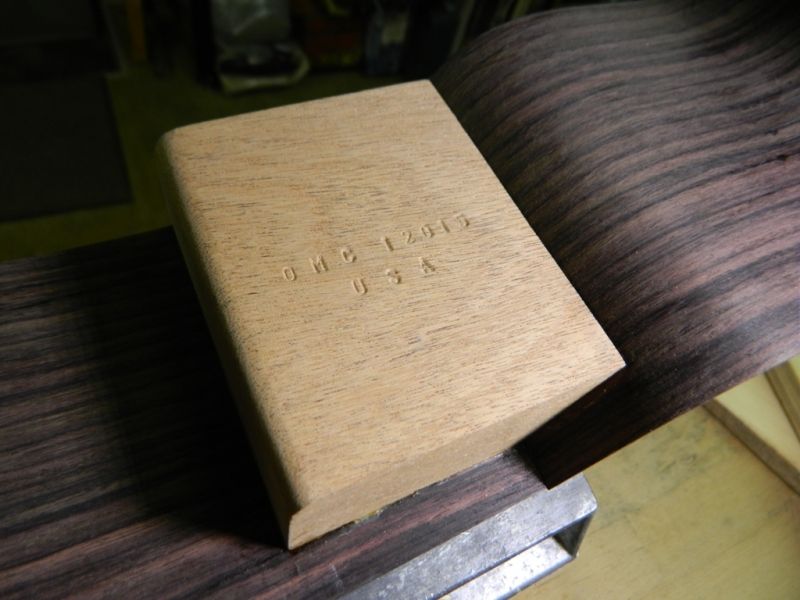

Gluing in the mahogany neckblock

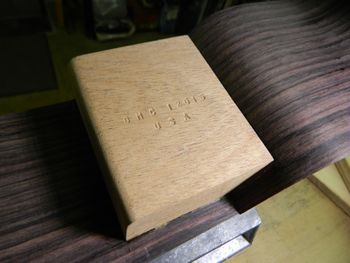

Neck block in place

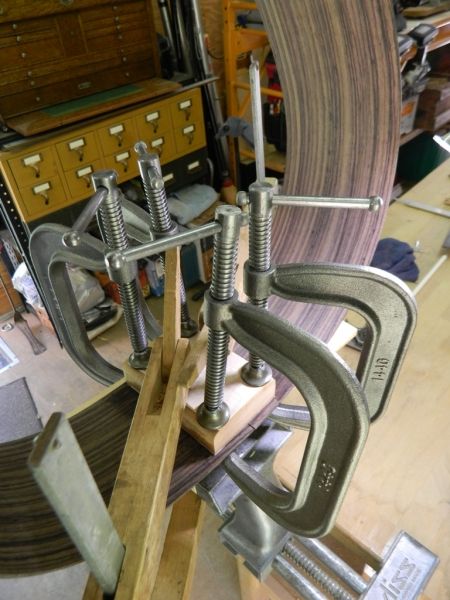

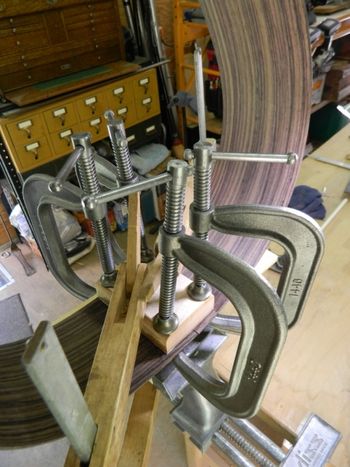

Gluing in the tail block

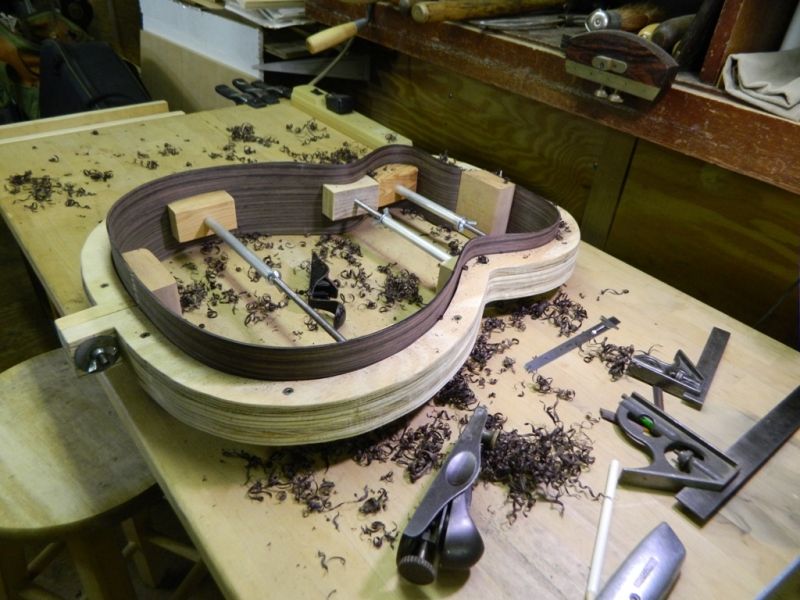

Hand planing the sides to the blocks

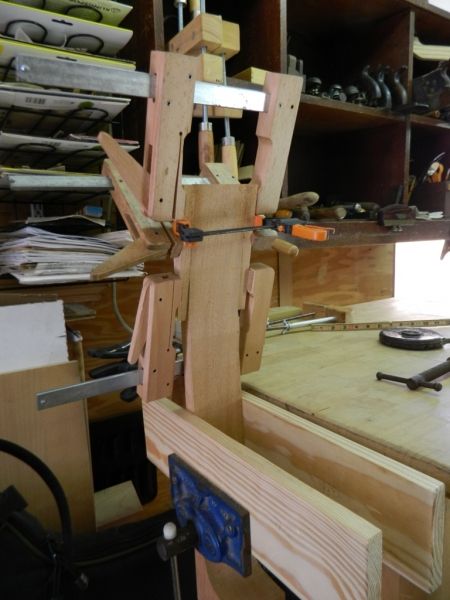

Gluing "ears" to the headstock

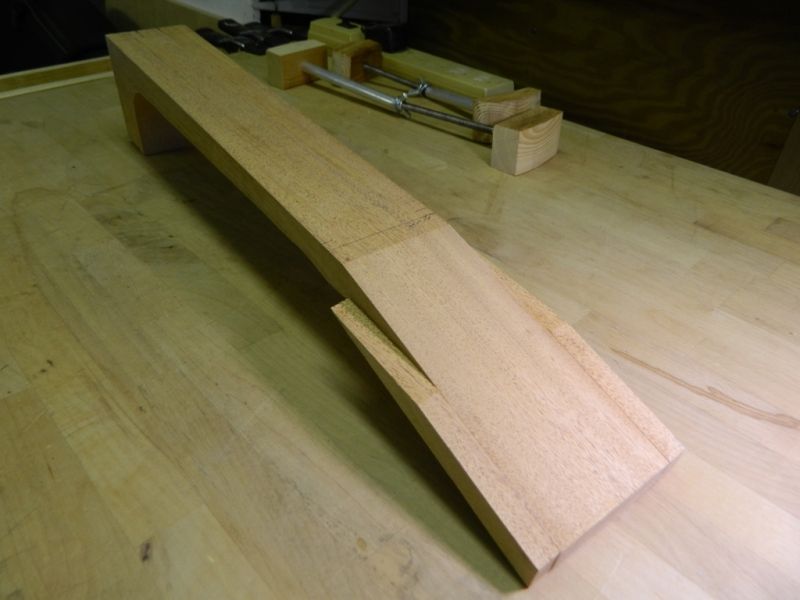

One piece Honduran mahogany neck blank
Making radius sanding blocks

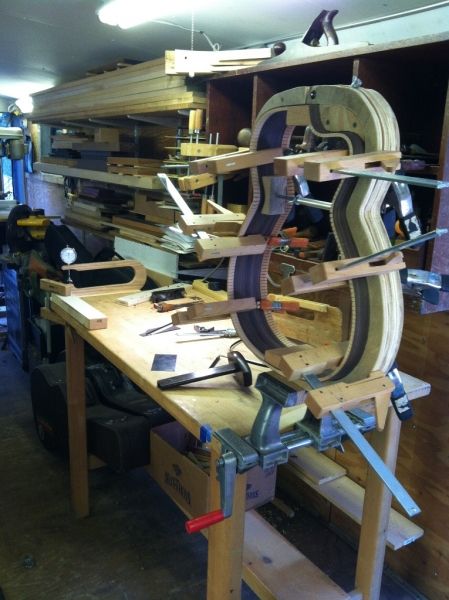

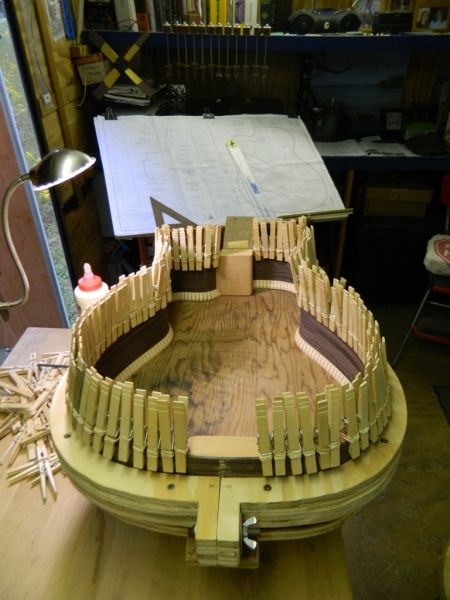

Gluing in the kerfings; spruce on the top, mahogany on the back
Carving the mahogany side struts
Laying out the side strut locations
Gluing in the side struts
Laying out the back braces
Shaping the back braces
Recessing the tailblock for electronics

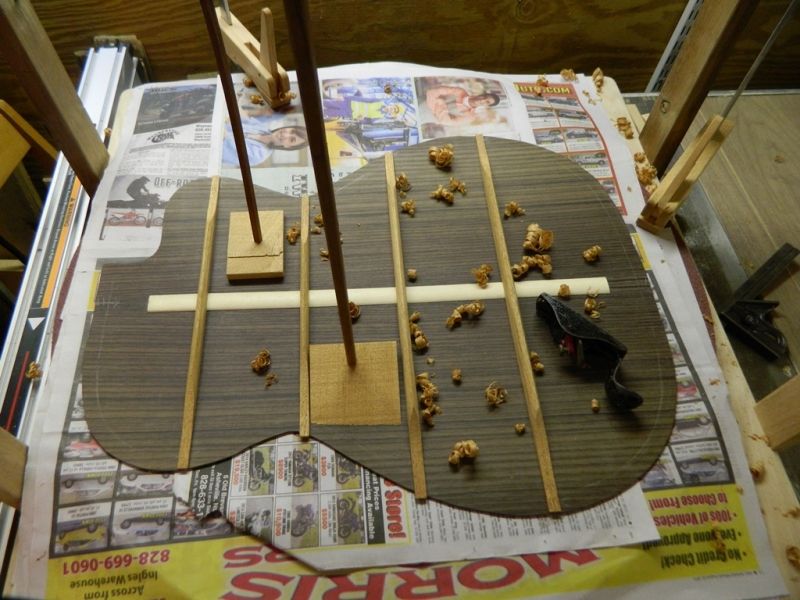

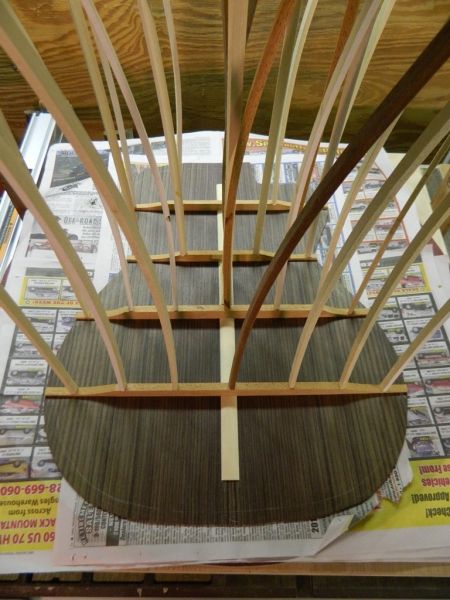

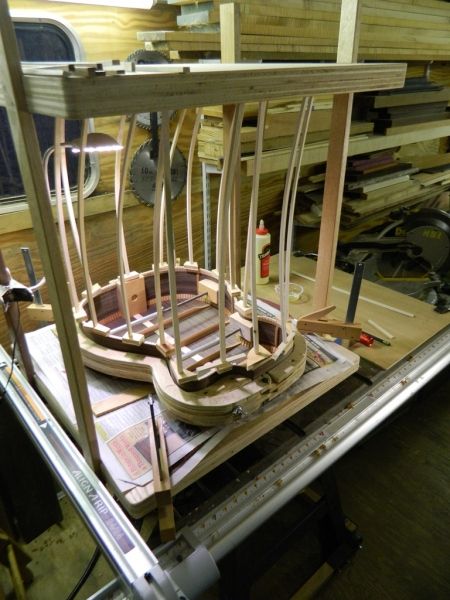

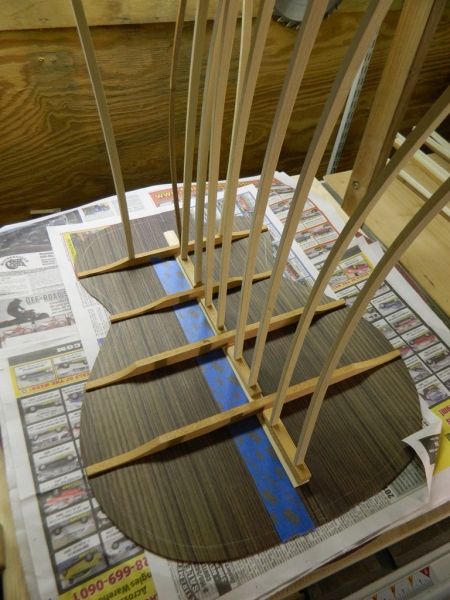

Gluing the mahogany back braces

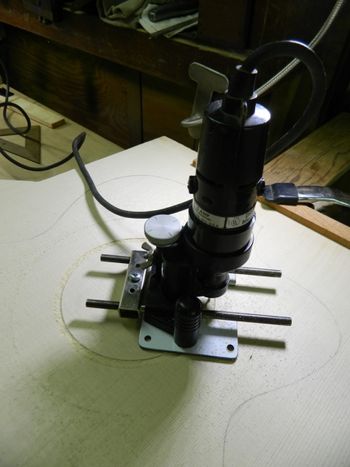

Using shop-built jig to inlay rosette
Gluing rosette into the spruce top

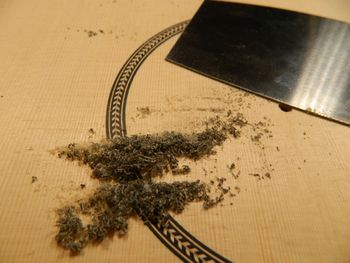

Scraping rosette flush with top

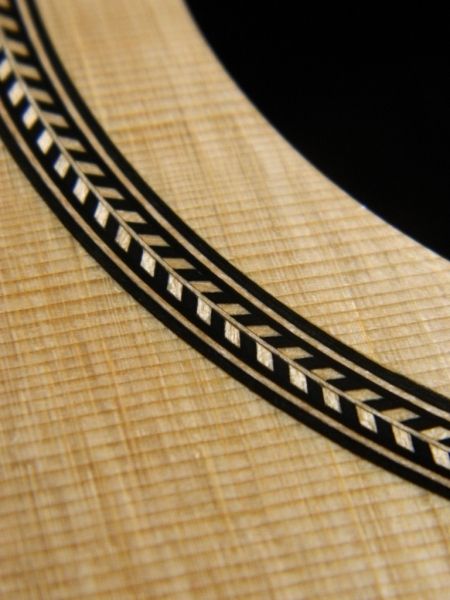

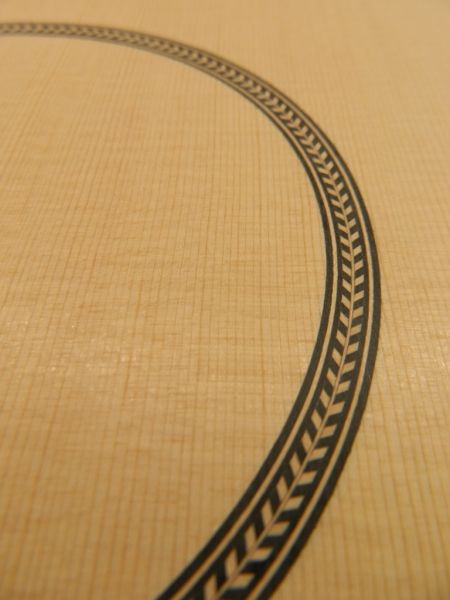

Finished inlaid herringbone rosette

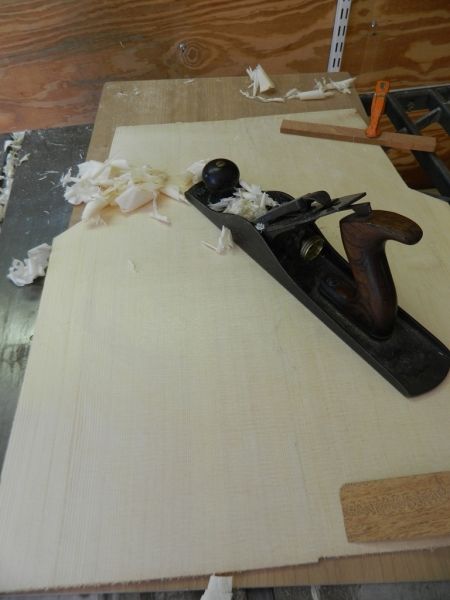

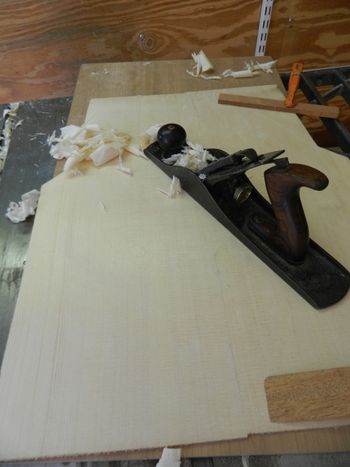

Thicknessing the top by hand

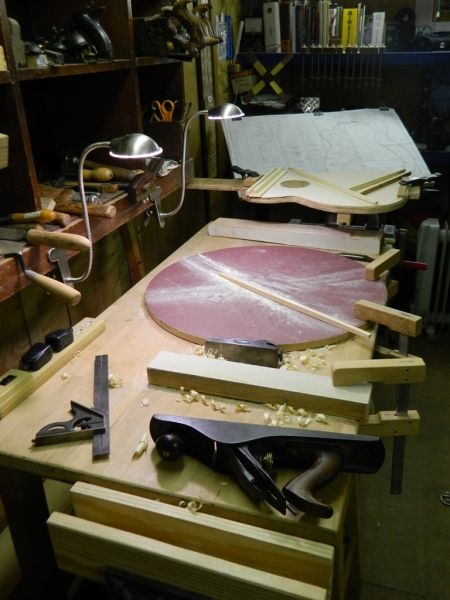

Radiusing top braces in 30' dish
Gluing in center strip

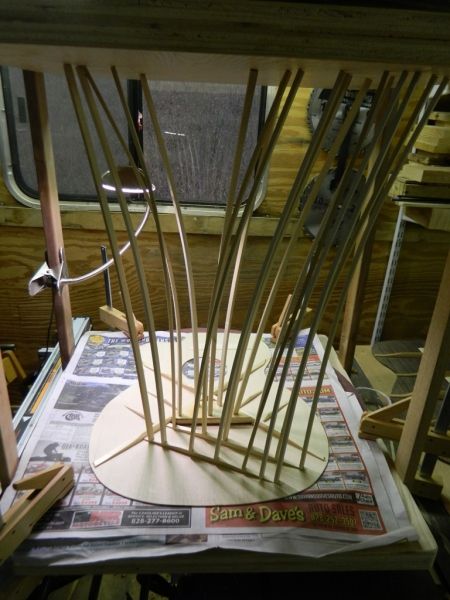

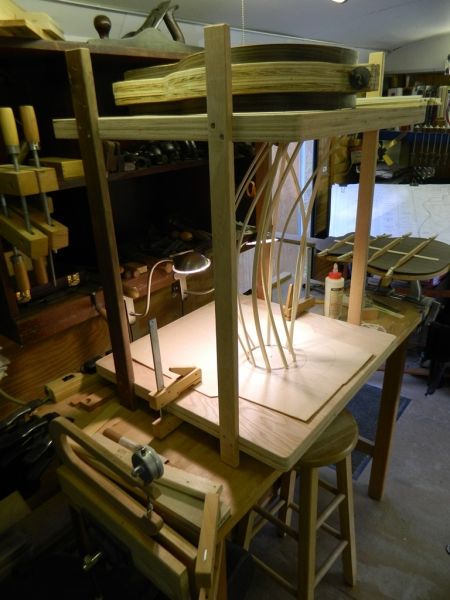

Gluing in aged spruce top bracing (from private stash)

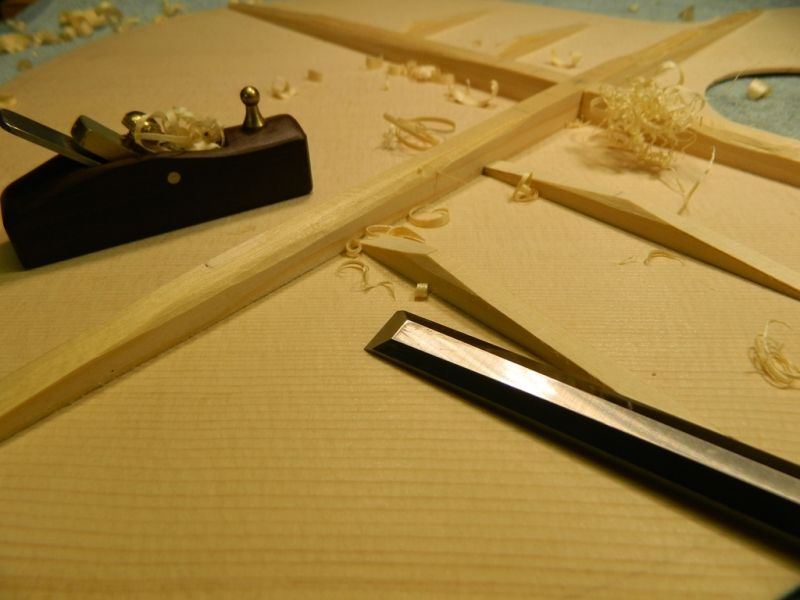

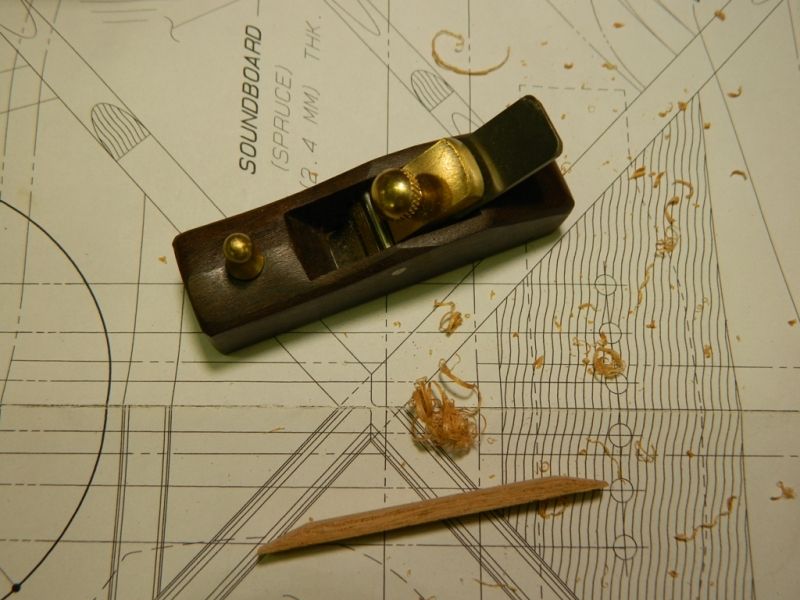

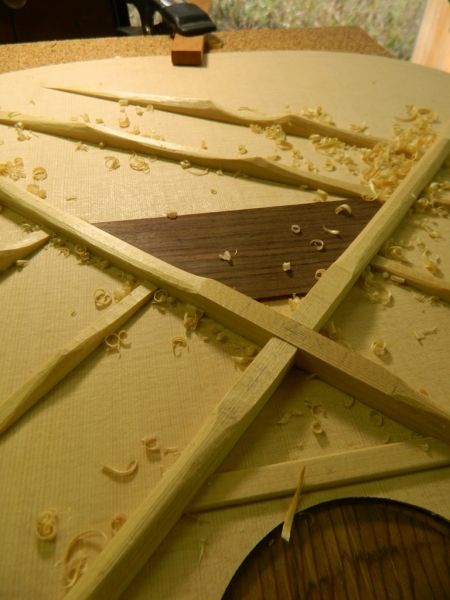

Shaping the top bracing
Removing extra material

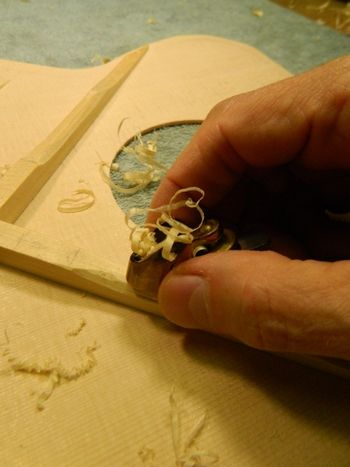

Voicing the top

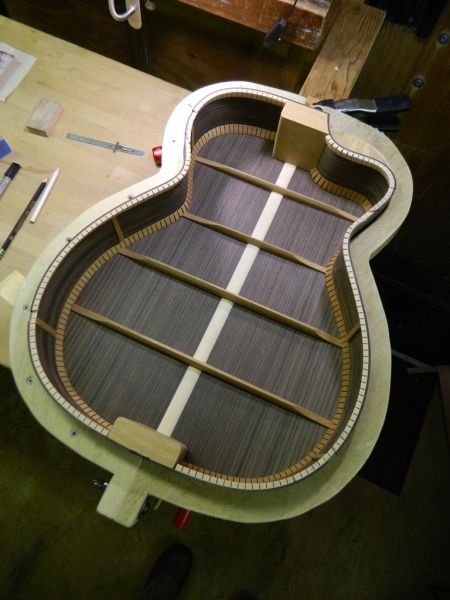

Nice and clean

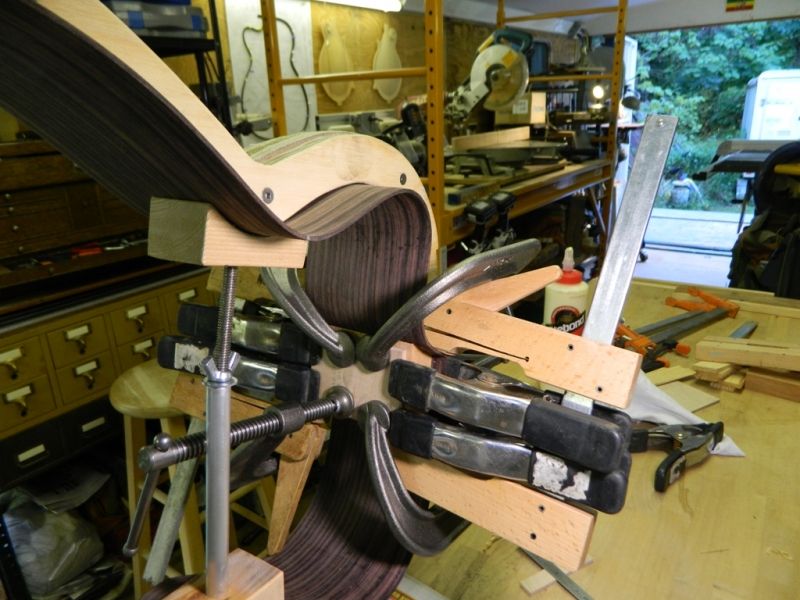

Gluing back to the rims
Routing end graft slot

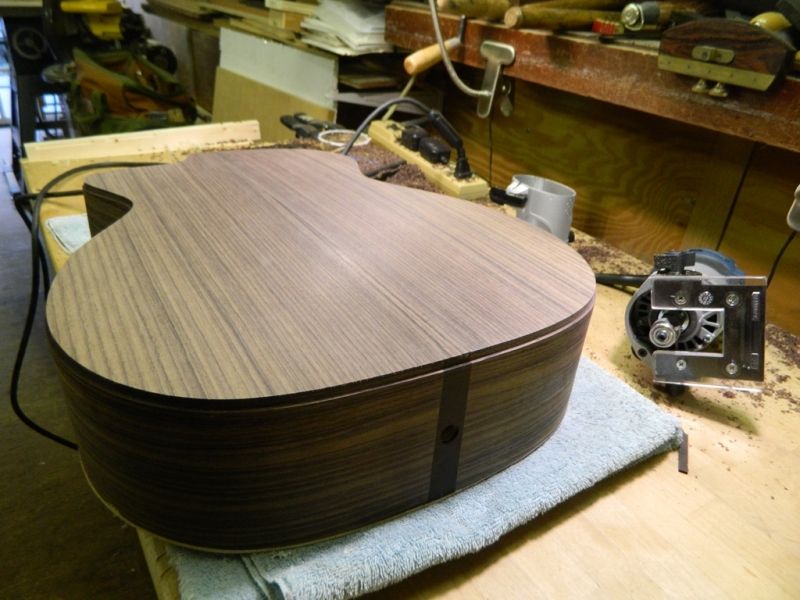

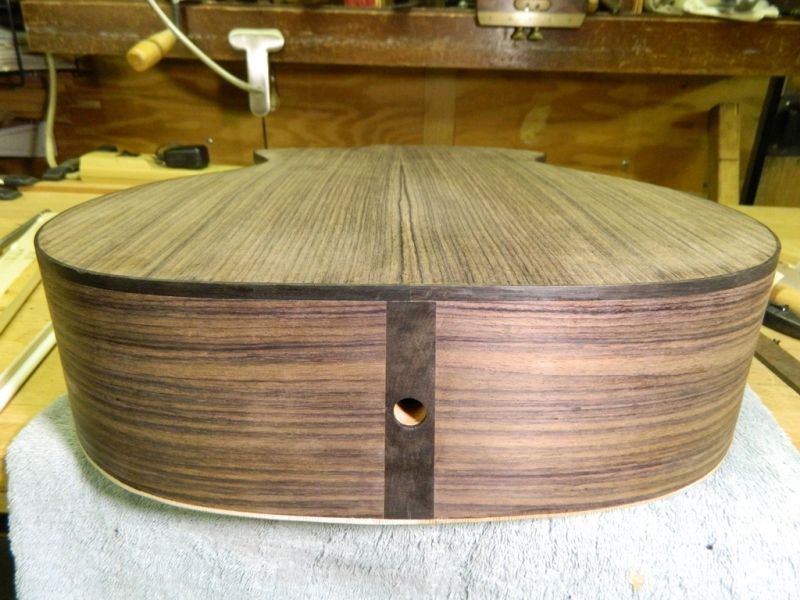

Fitting ebony end graft

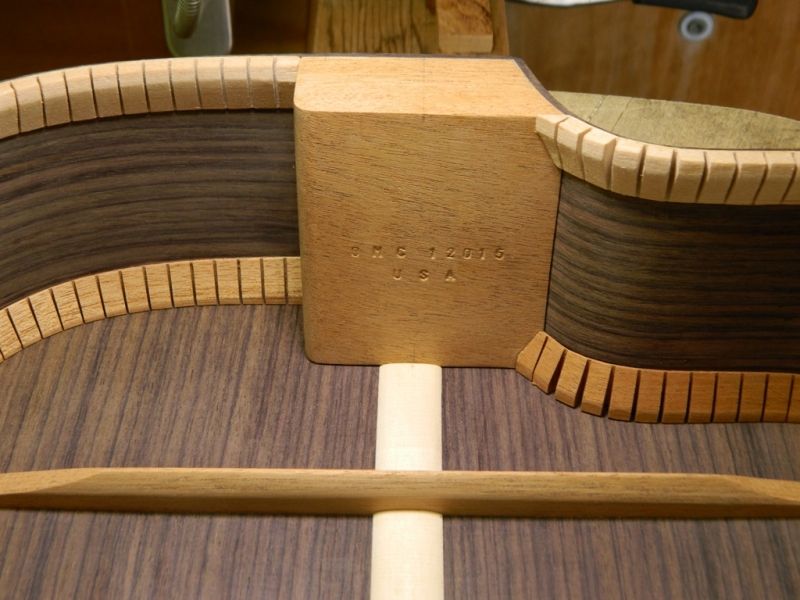

Almost ready for the top

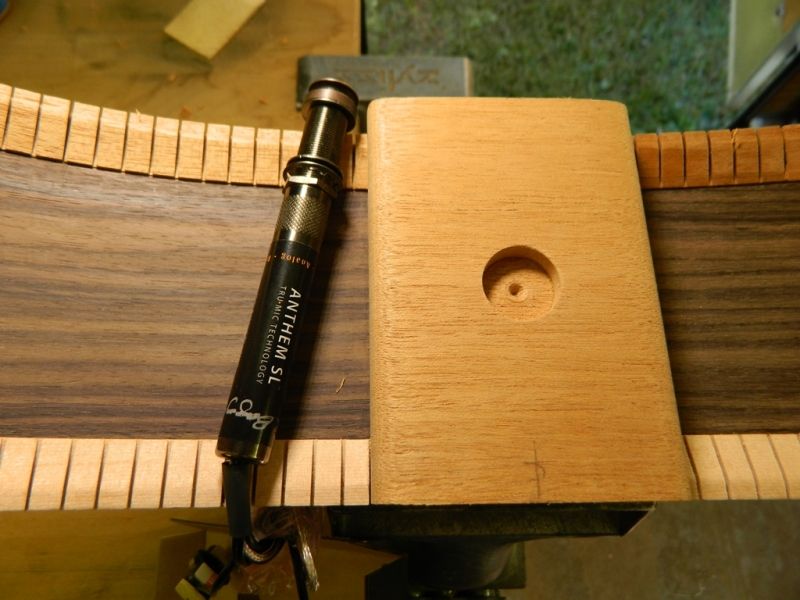

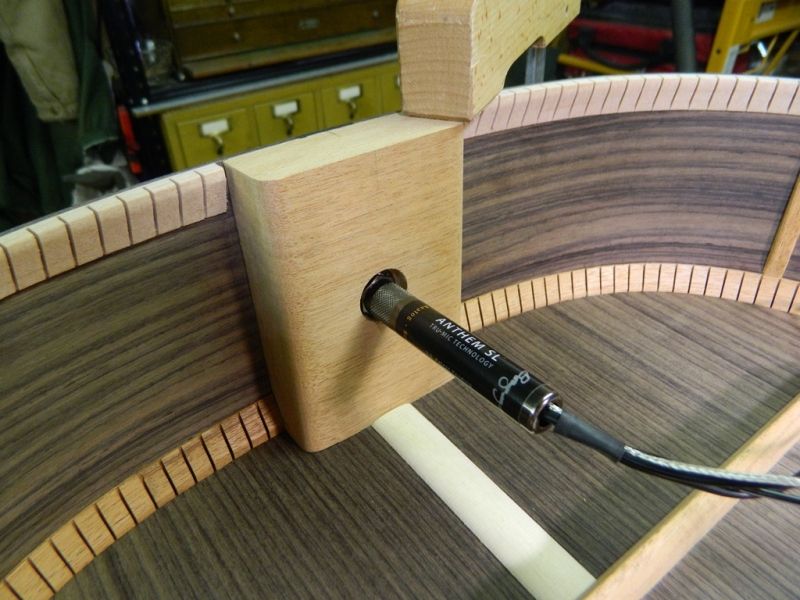

Final electronics clearance check

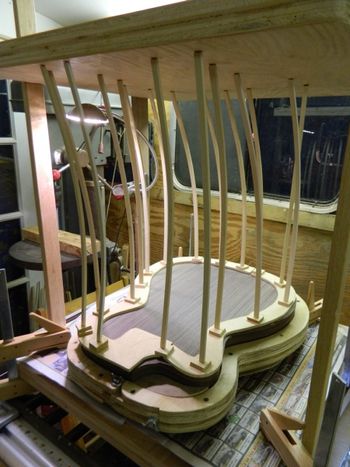

Gluing top to rims and back
Routing for ebony binding

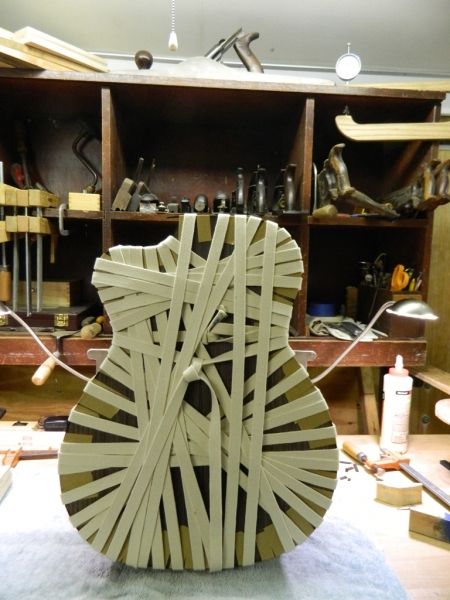

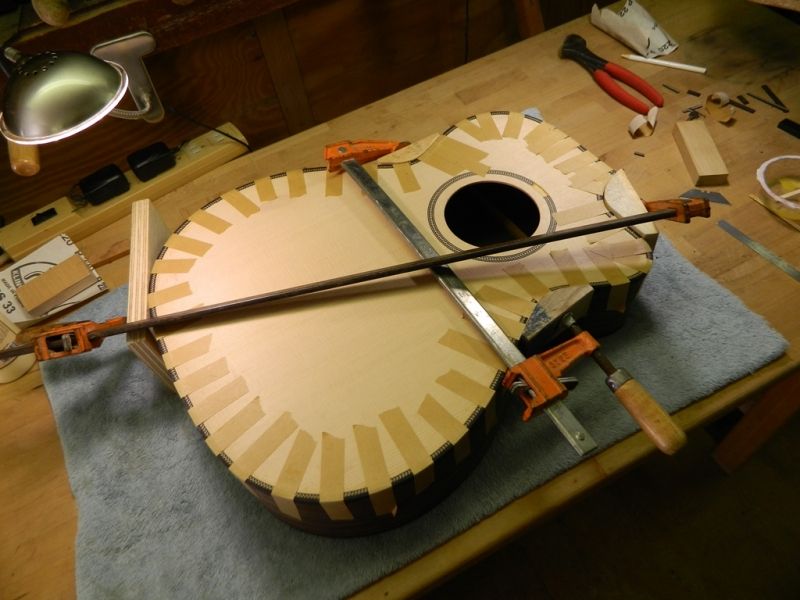

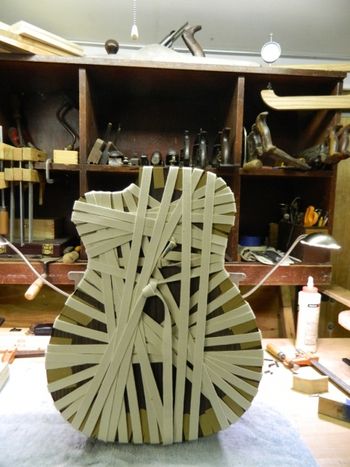

That's why they call it binding

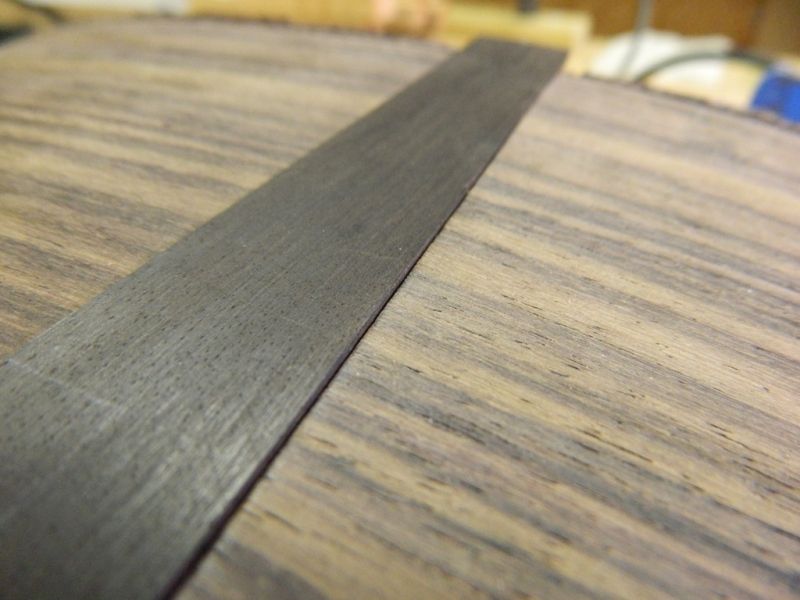

Ebony back binding on

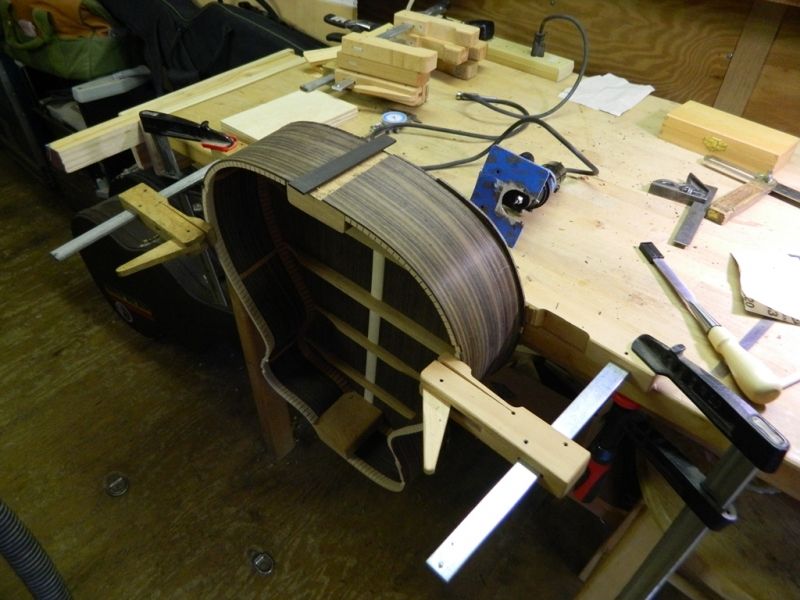

Routing the binding+purfling channel
Help in the tight curves

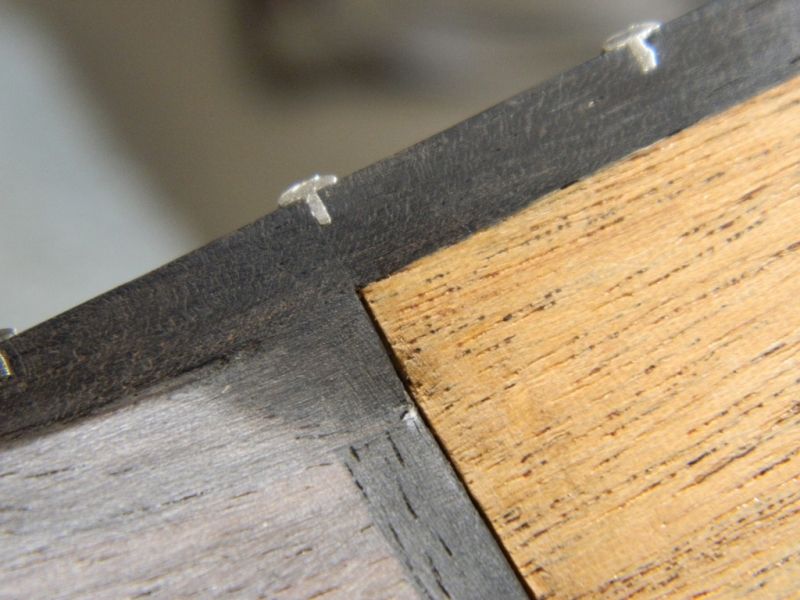

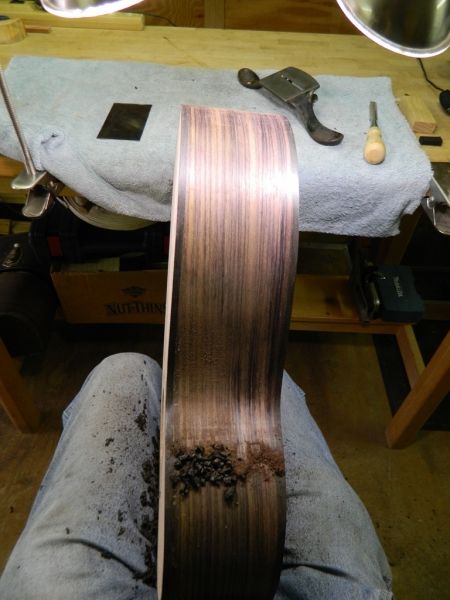

Scraping the sides and bindings level

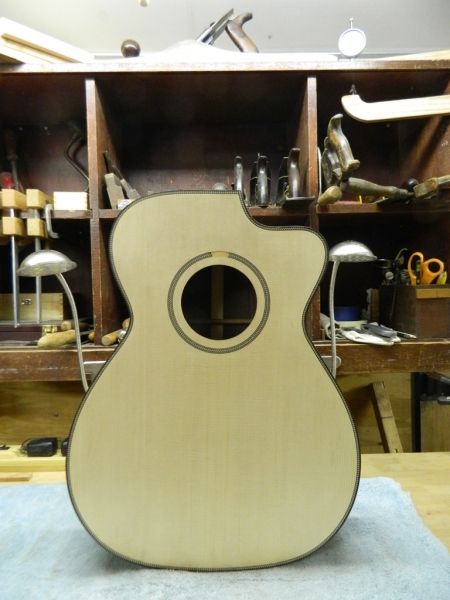

The bound box

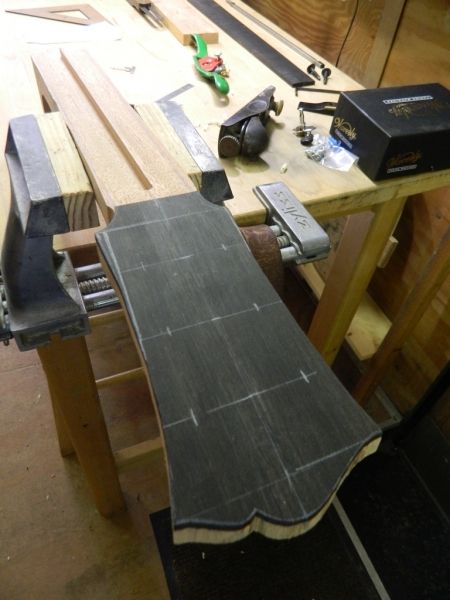

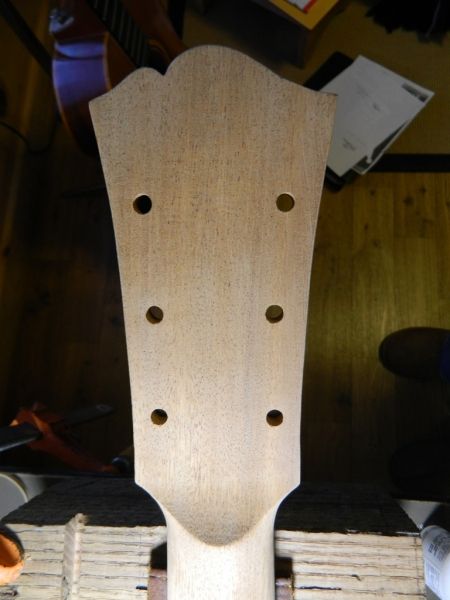

Laying out the headstock

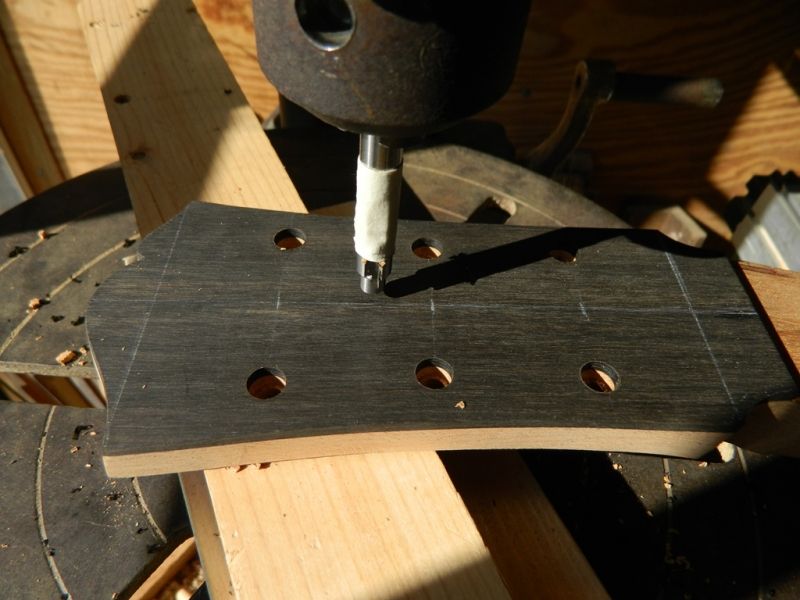

Counter-boring for tuner bushings

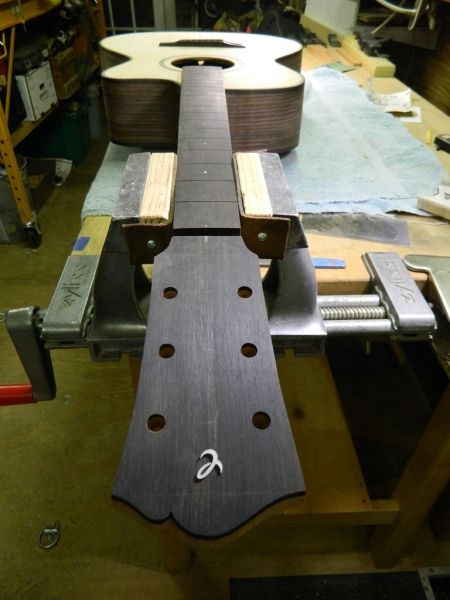

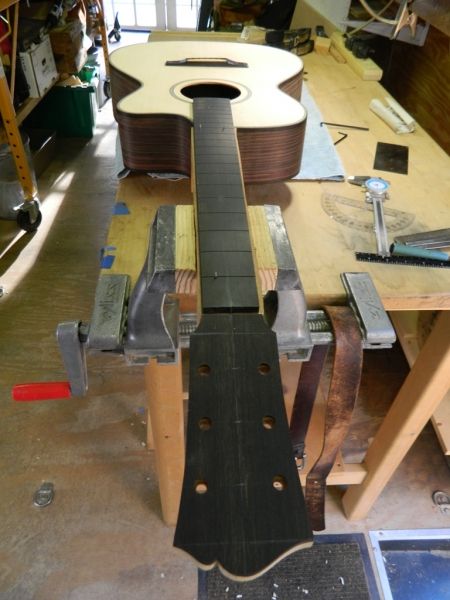

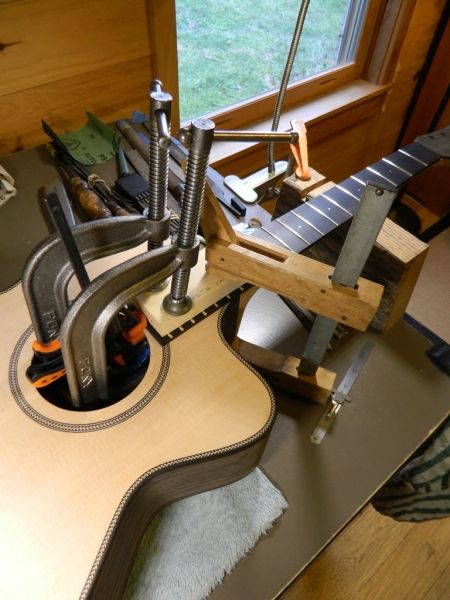

Aligning the fretboard

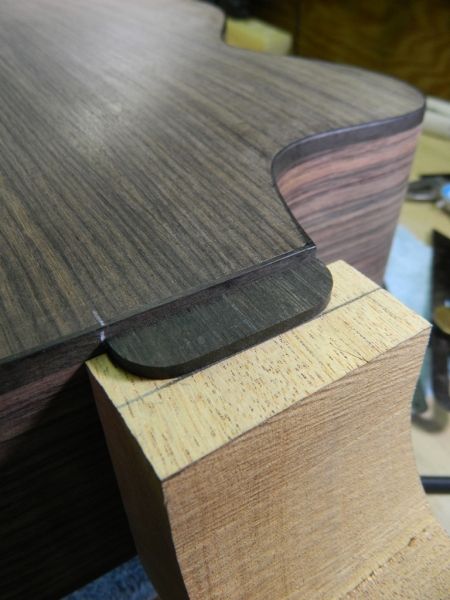

Fitting the ebony heel cap
Tell-tale signs...
Laying out the neck profiles

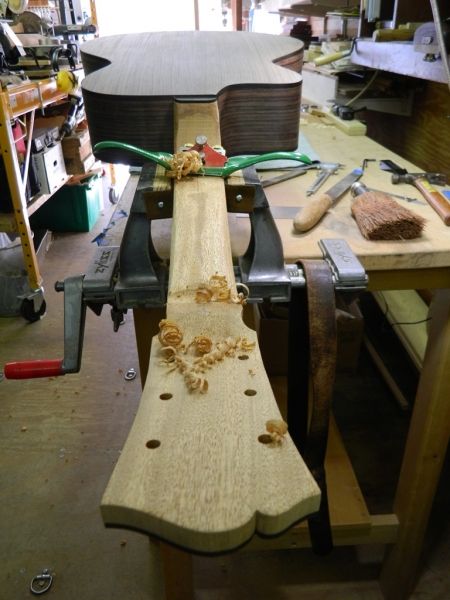

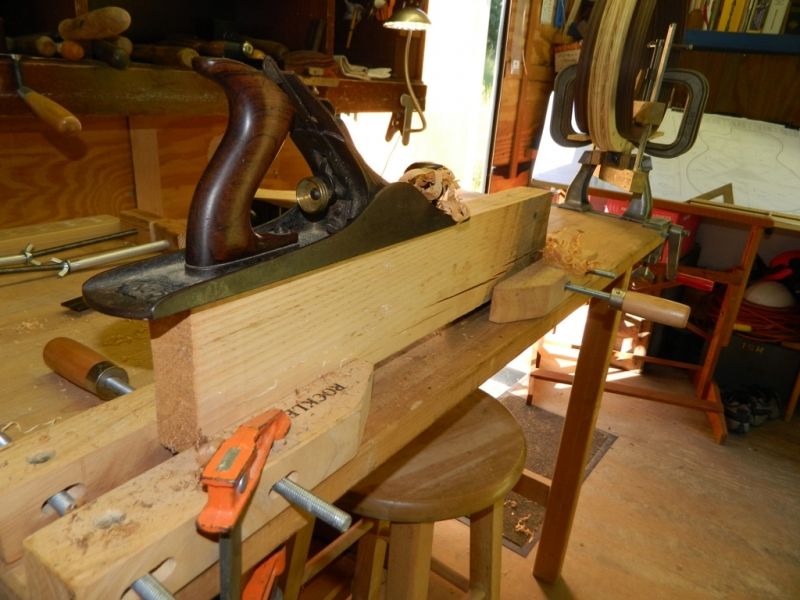

Working the Honduras mahogany

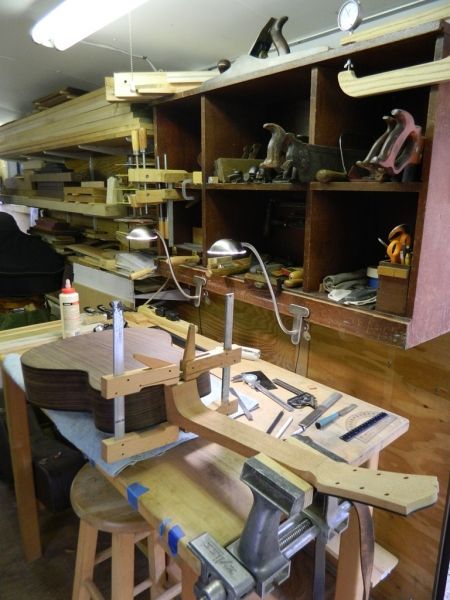

Early morning start

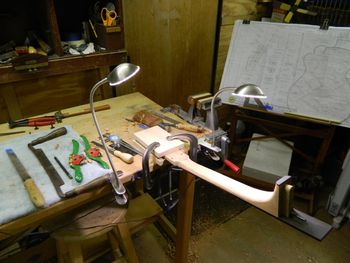

Taking shape
Eyeballing the fret markers

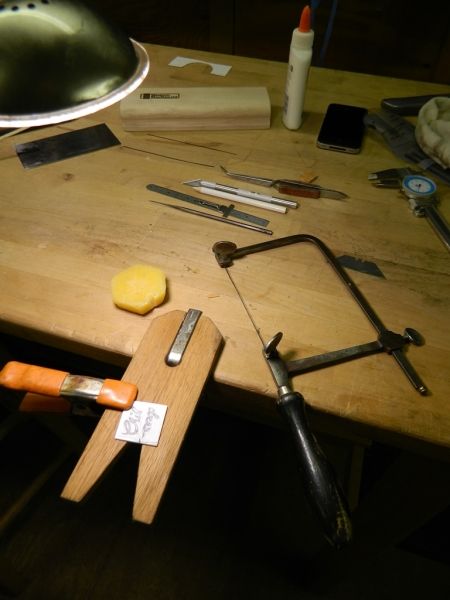

Ready to cut the pearl

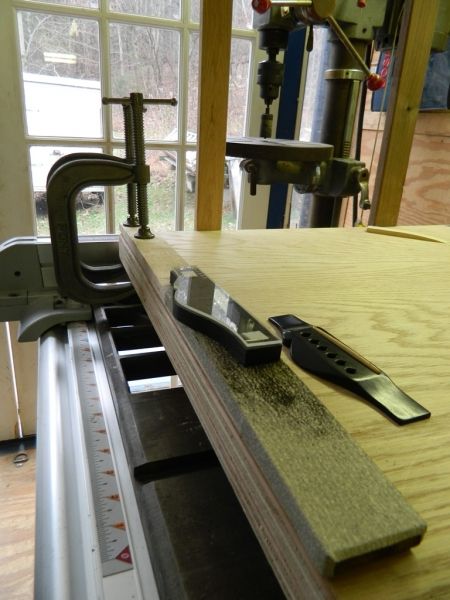

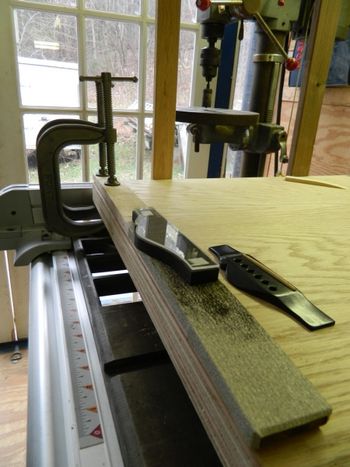

Sanding a 30' radius on the ebony bridge

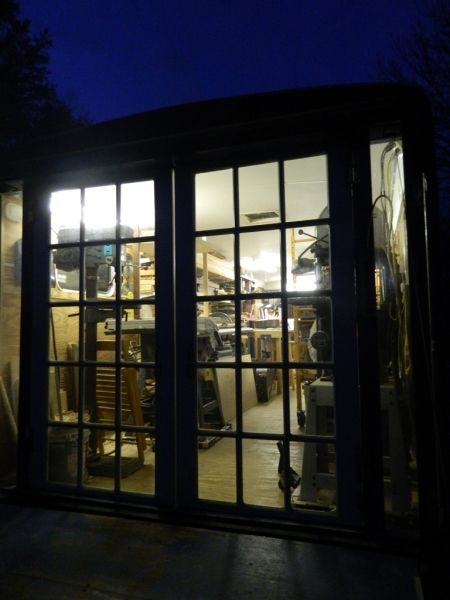

Midnight oil

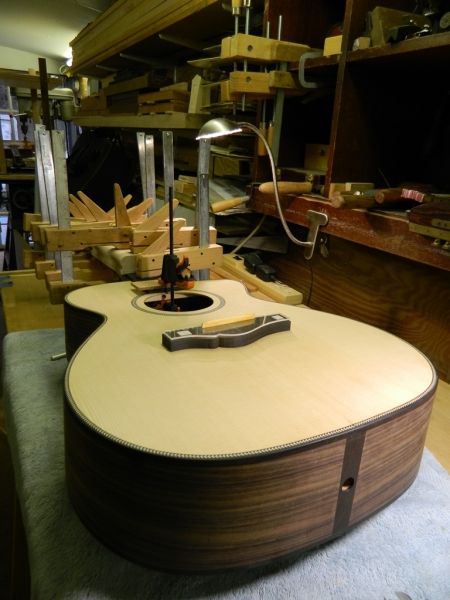

Checking the fit on the radiused top
Less is More

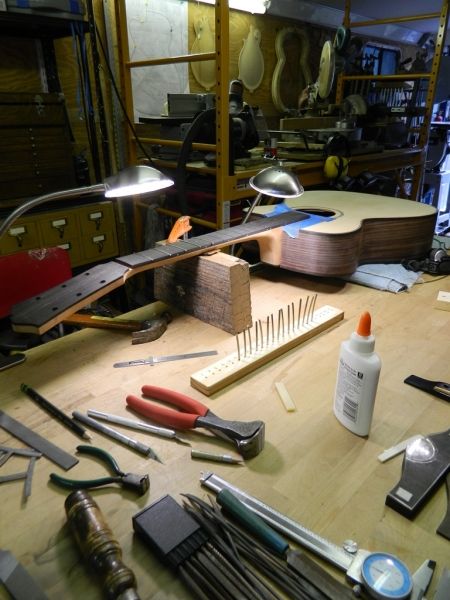

No sweat... just fret

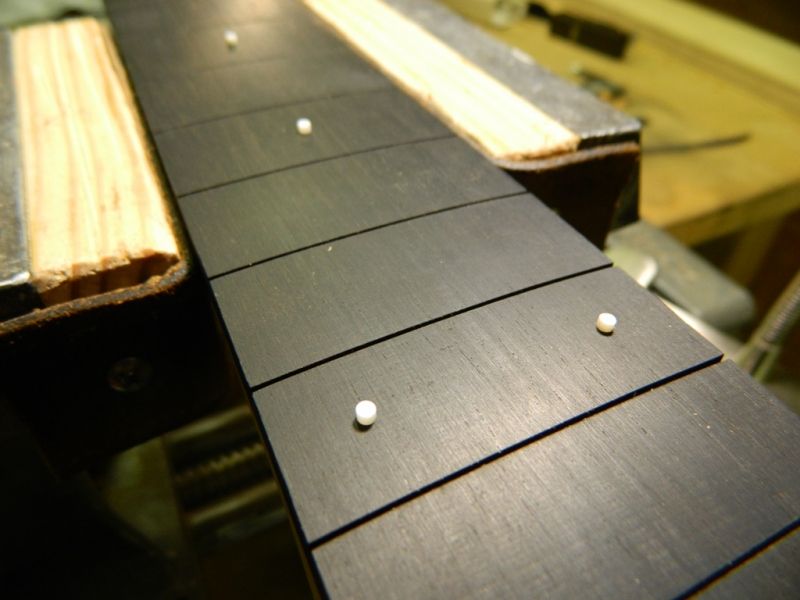

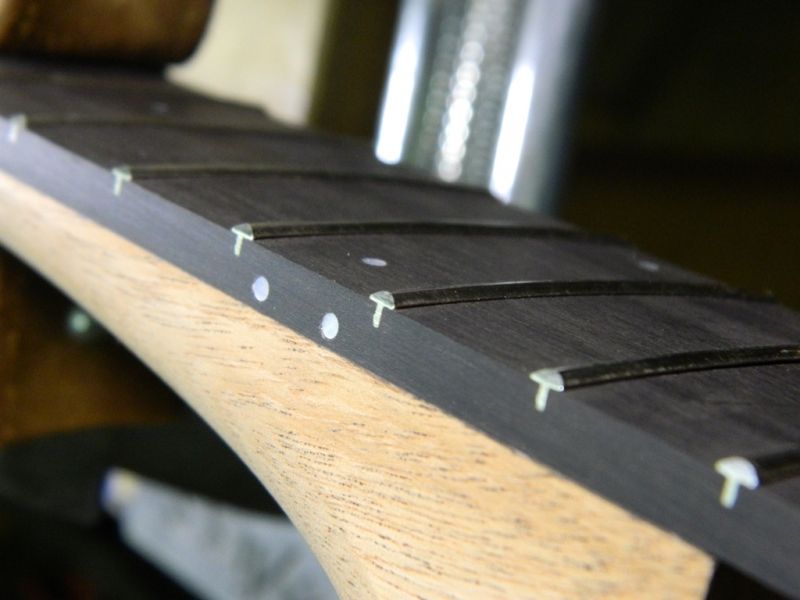

Pearl side dots

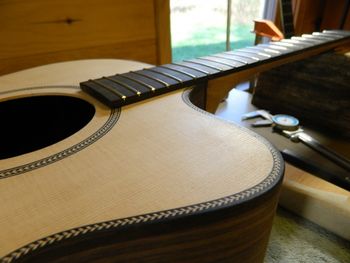

Sanding to #320 grit works

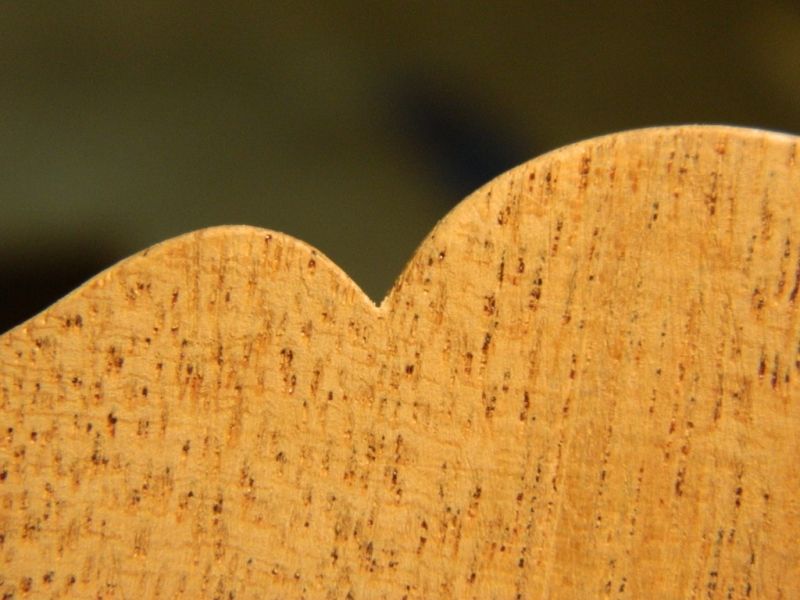

Getting the volute right

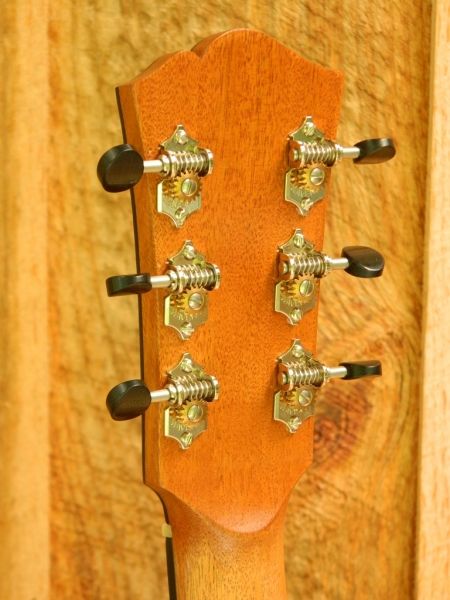

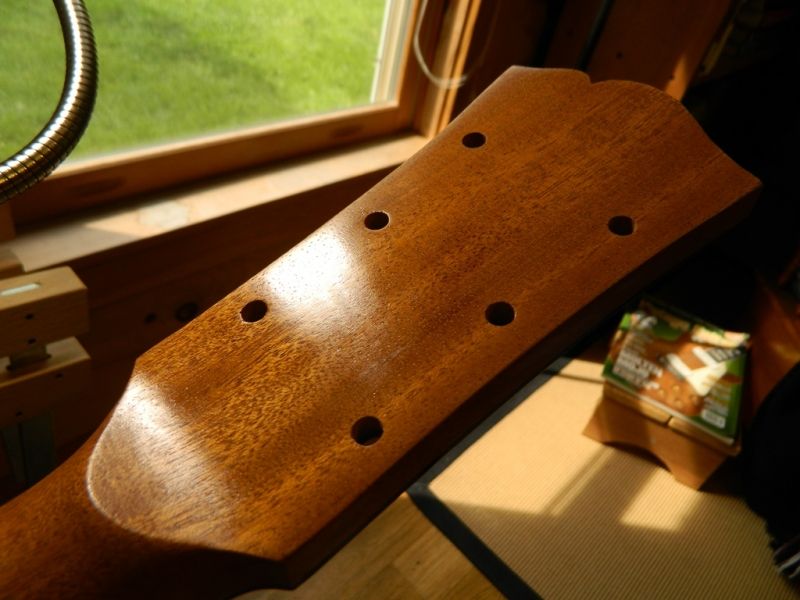

Back of headstock detail

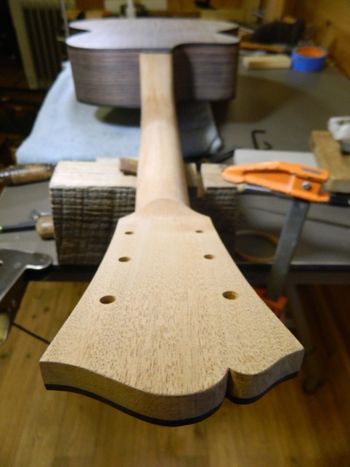

Getting there

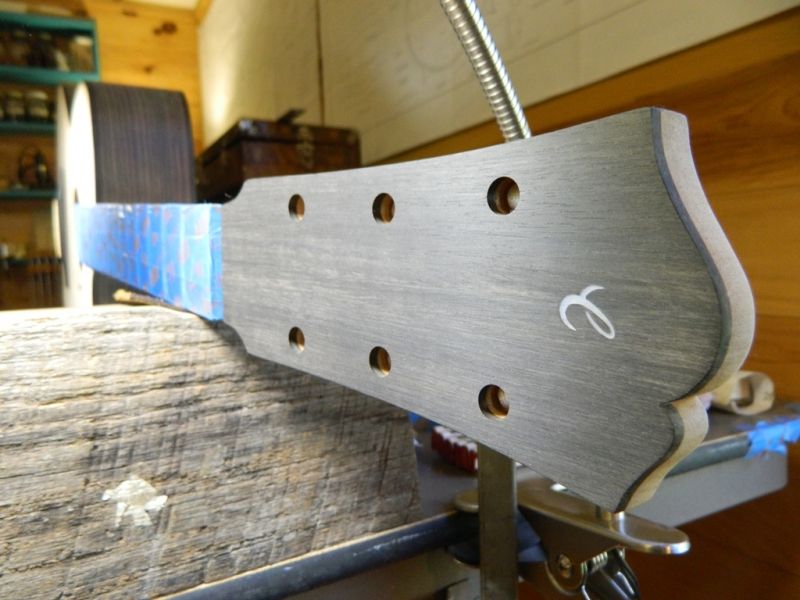

Setting up to route for inlay

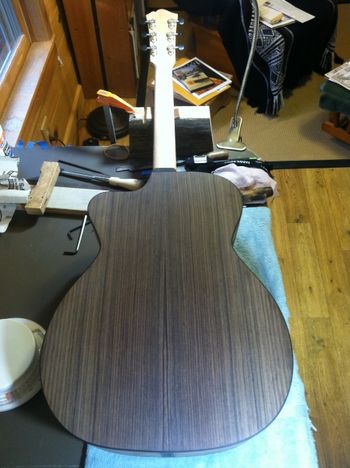

This is going to be good

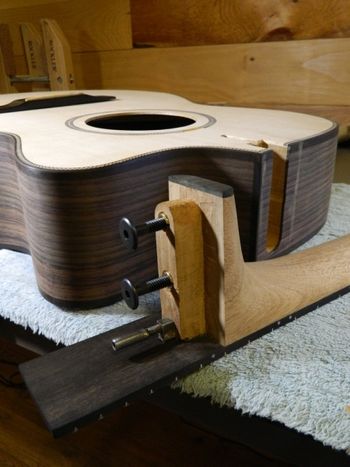

Mortise and tenon bolt-on neck with 2-way truss rod
Attaching the neck
Working really, really small

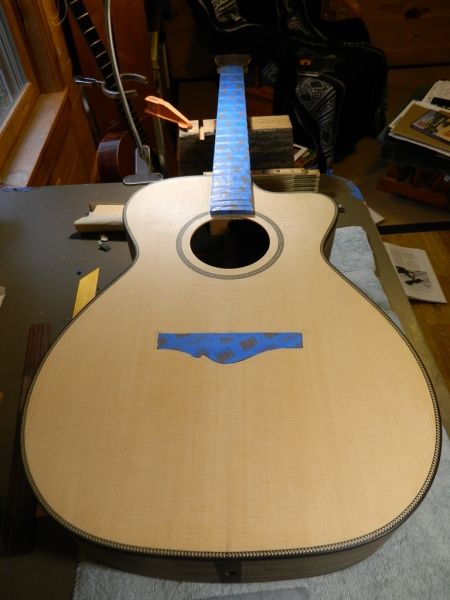

Prepping for finish
Taped off and ready for applying 10,000 layers of "Moonshine Polish"

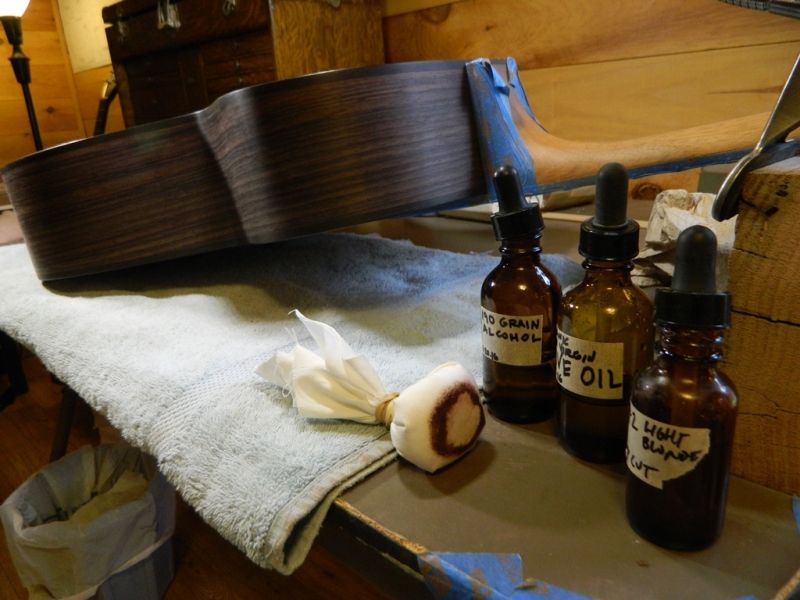

The ancient recipe...

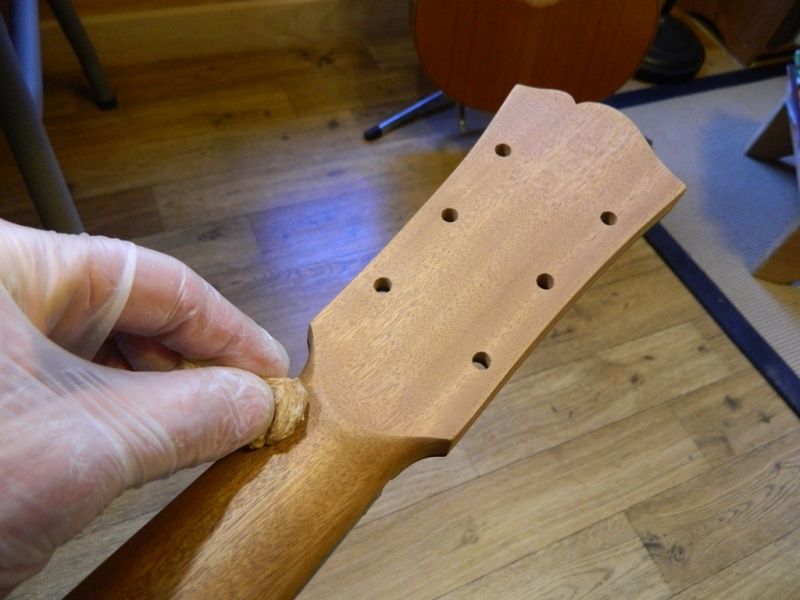

Pore-filling with mahogany dust around the volute
The layers have begun
Many finish layers later...

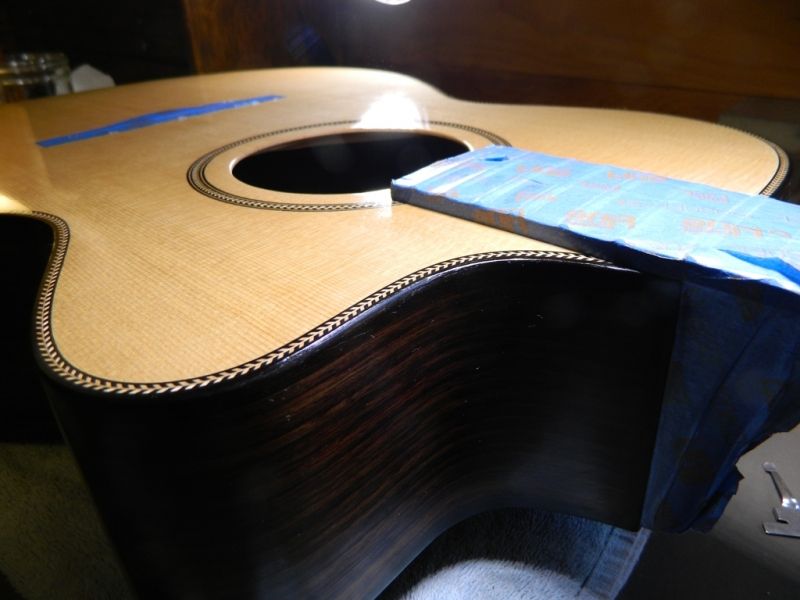

The herringbone comes alive
Literally hand-rubbed. A lot.

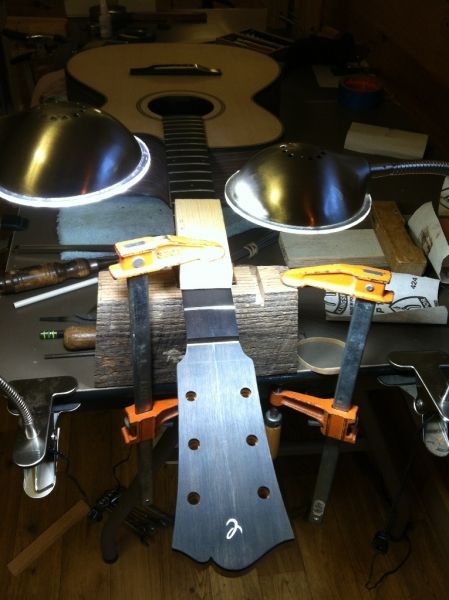

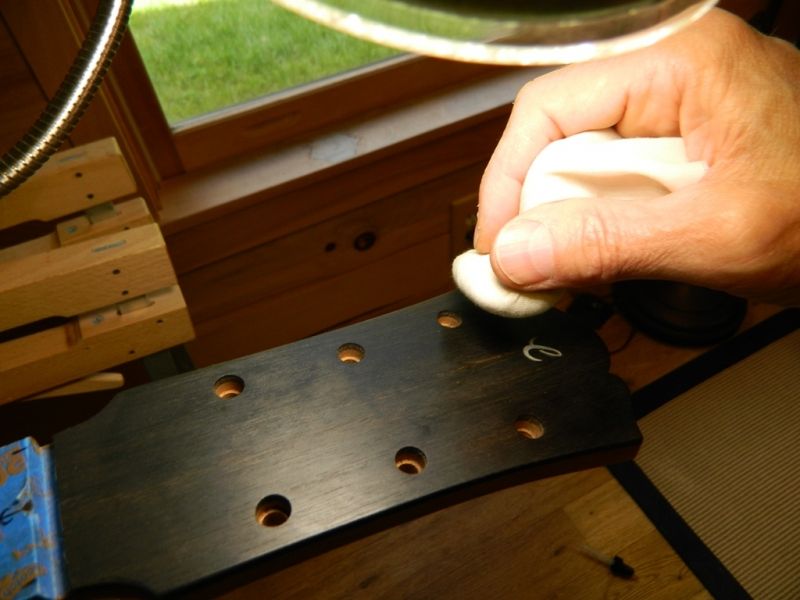

First layers of finish on the ebony headplate
Nice and smooth on the back of the headstock

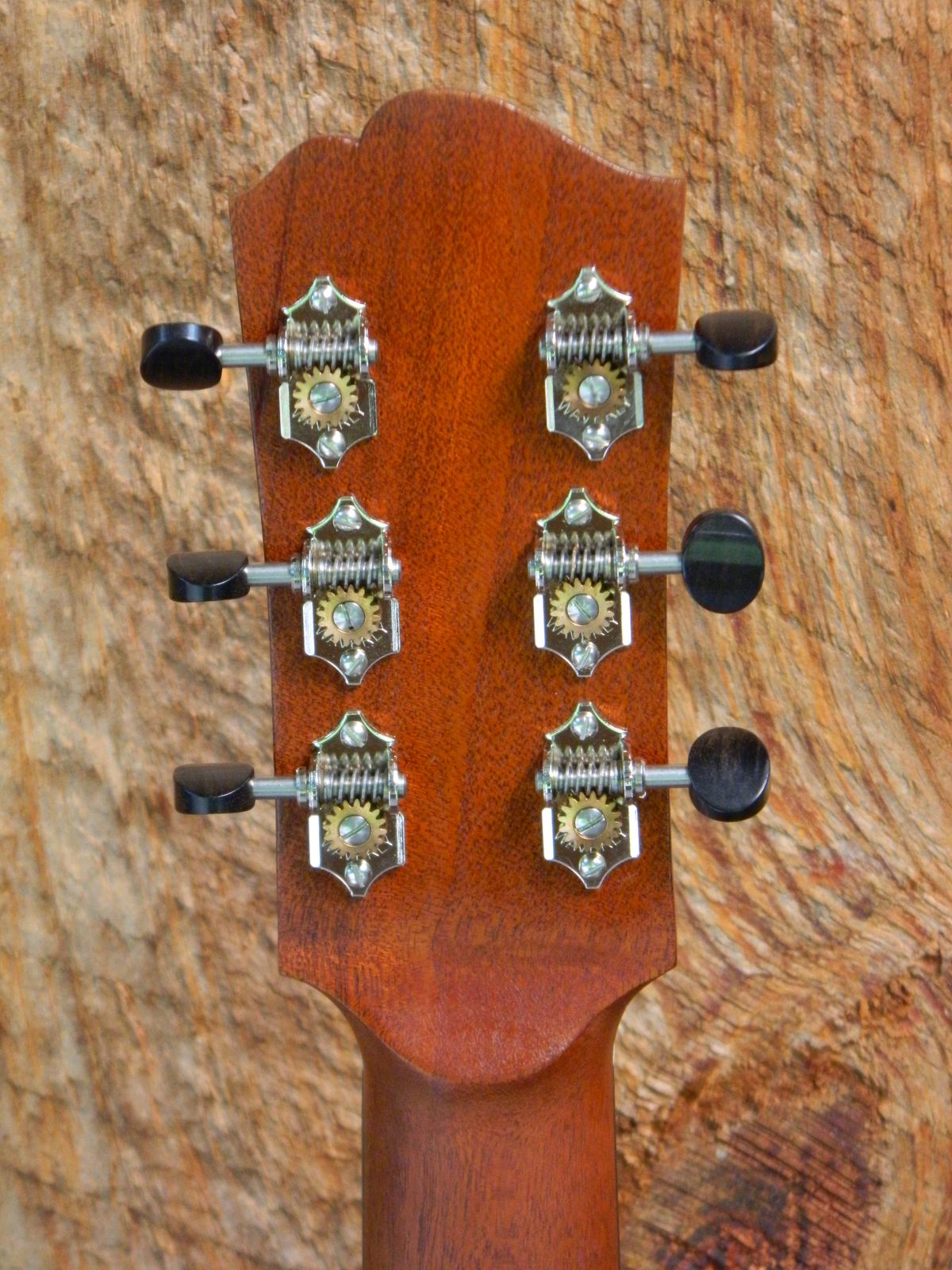

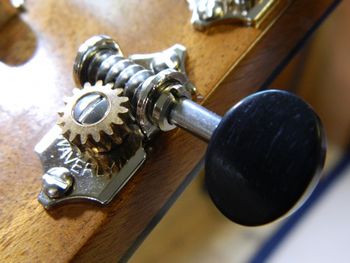

Waverly tuners with ebony buttons- jewelry for the guitar
Old-style tuner bushings

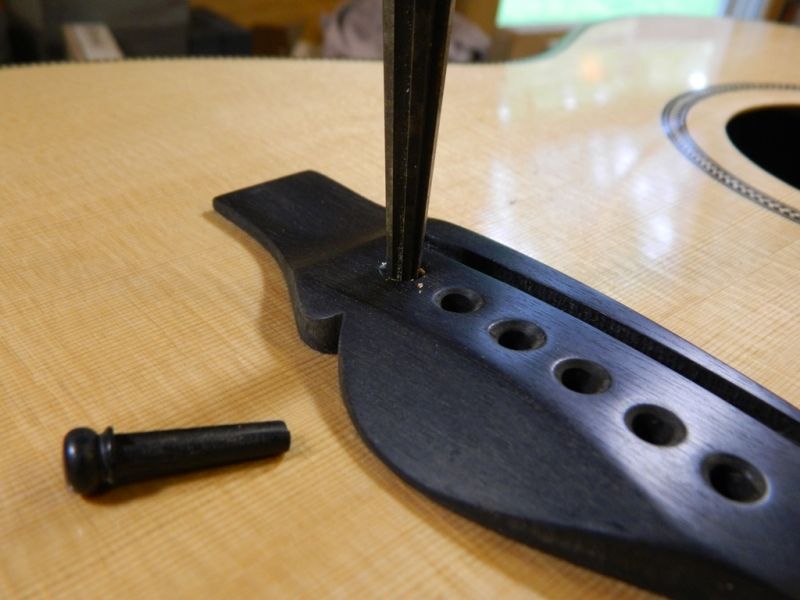

Fitting the ebony bridge pins

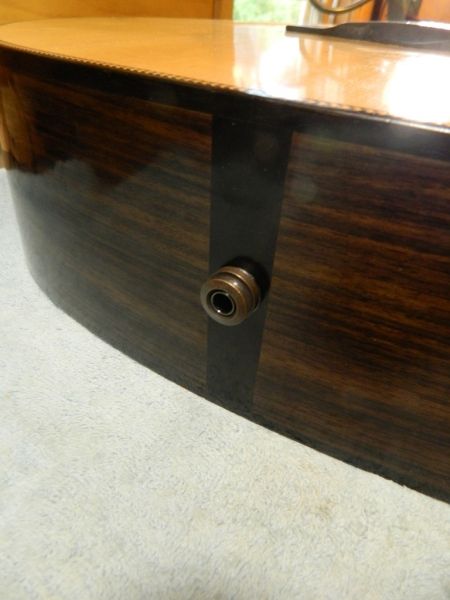

1/4" strap-jack for LR Baggs Anthem SL mic/pickup system

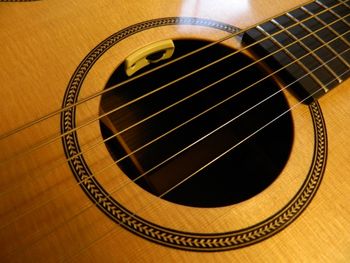

Volume control for internal mic/ under-saddle pickup

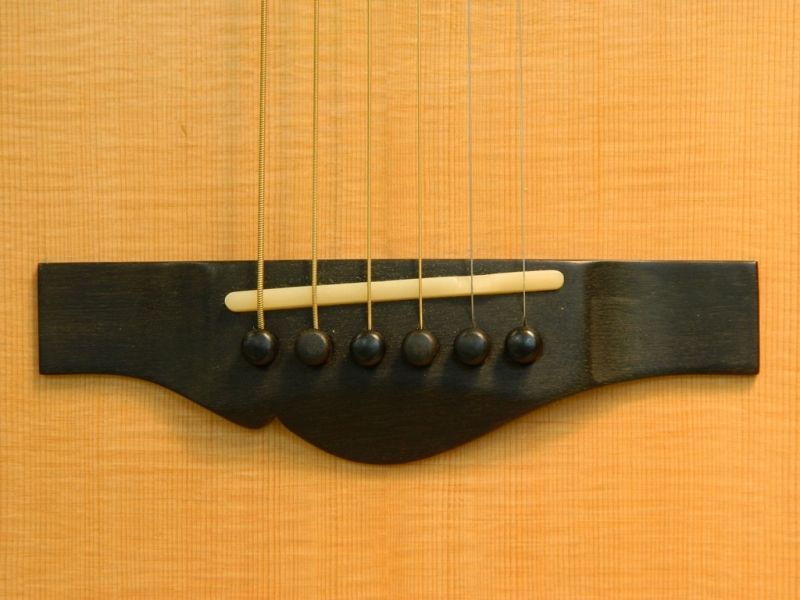

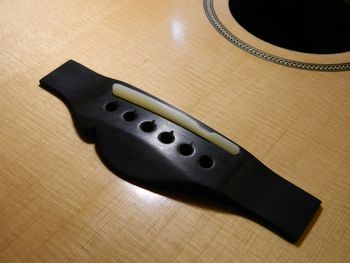

Compensated unbleached bone saddle in custom ebony bridge

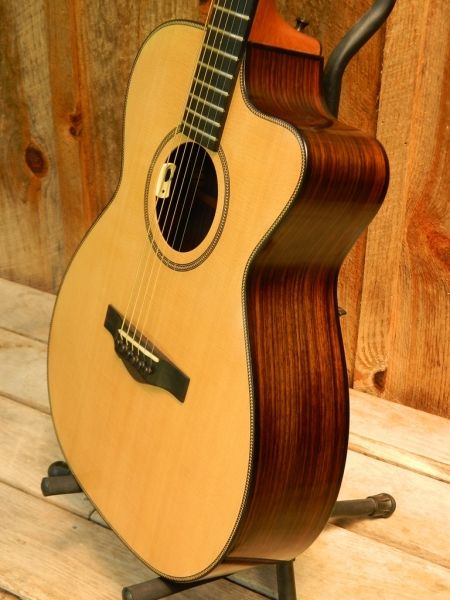

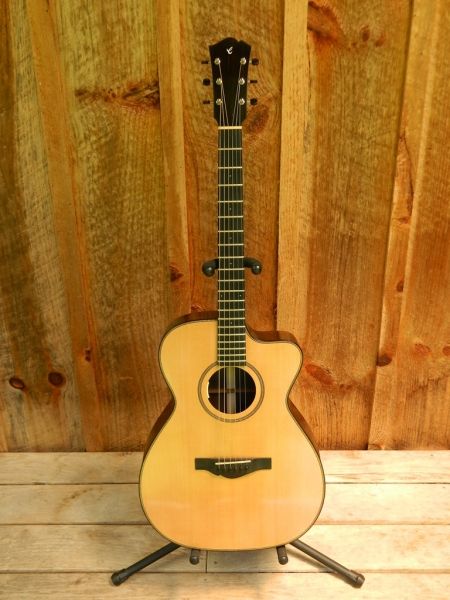

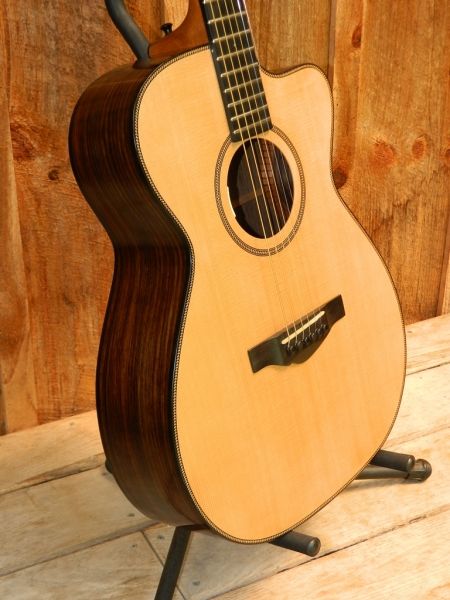

2016 Childres OMC #12015. For sale. With hardshell case.

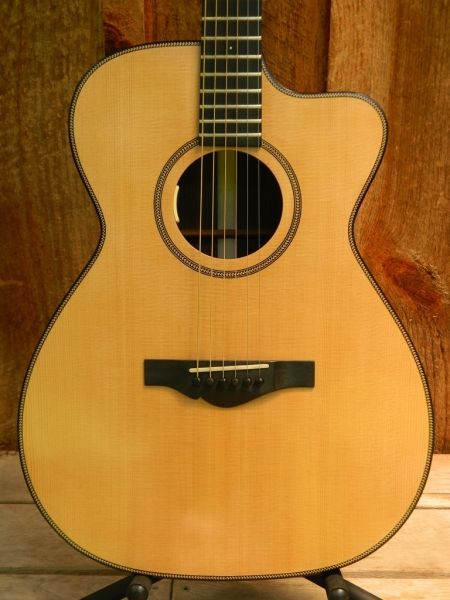

AAA Sitka spruce top

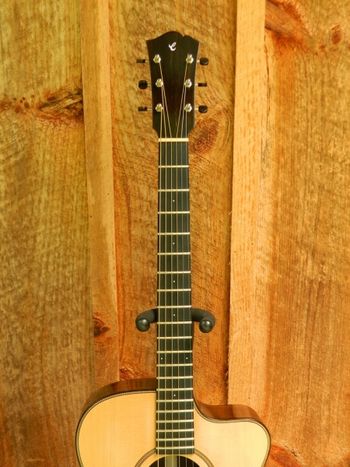

14 fret neck

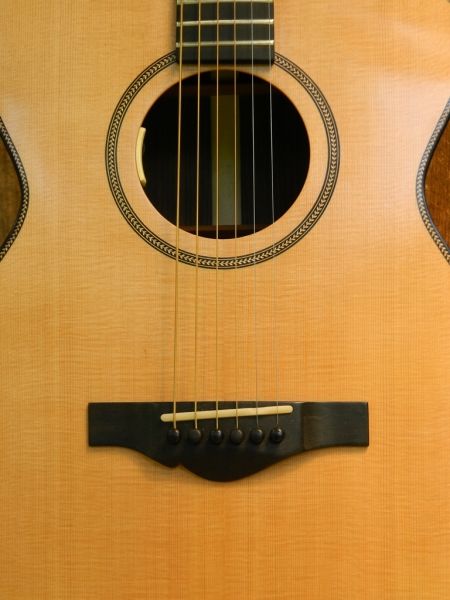

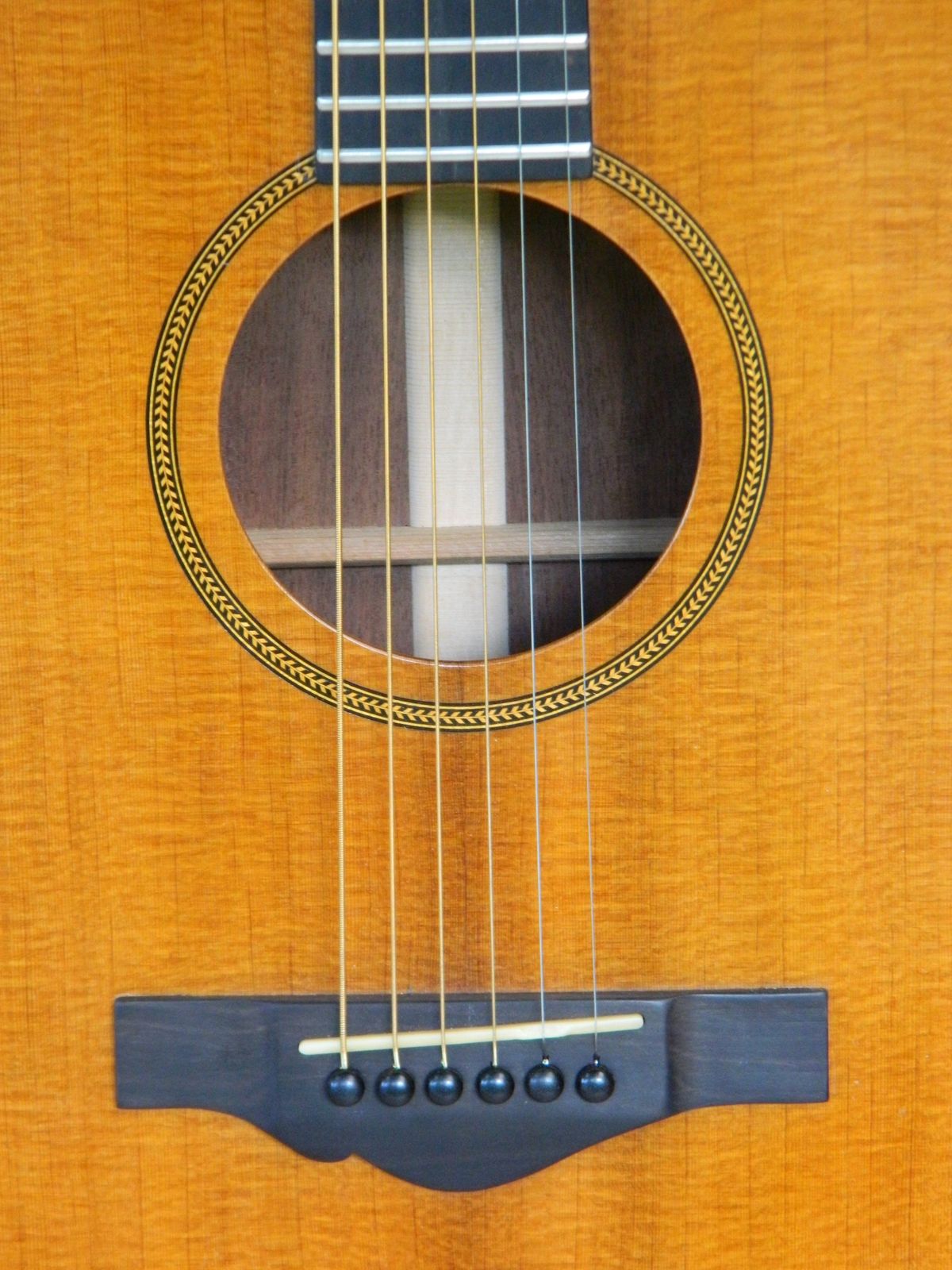

Custom ebony bridge; Medullary rays in top. Great sound.
Compensated unbleached bone saddle

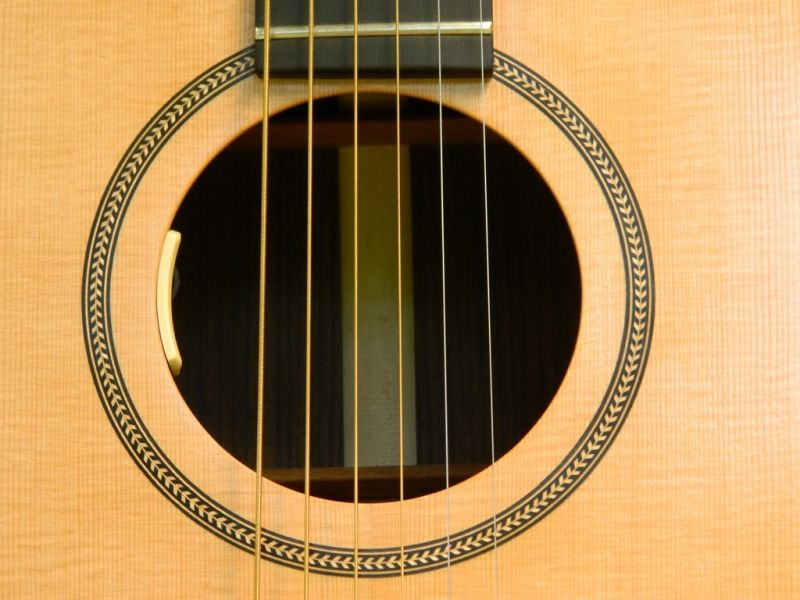

Herringbone rosette

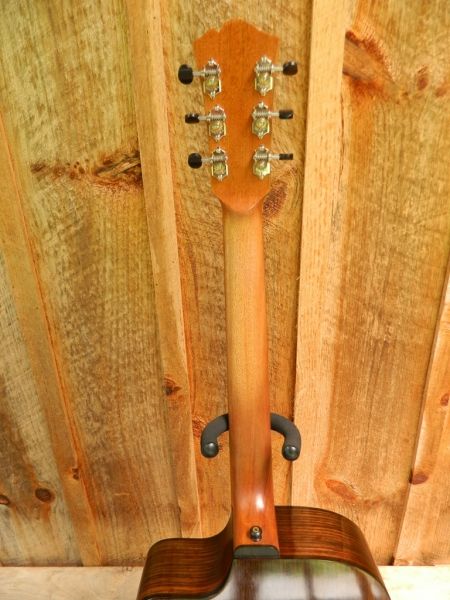

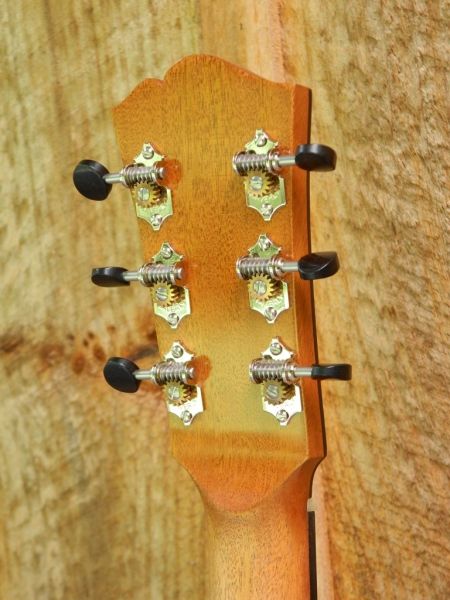

Back of headstock
Back of headstock 2

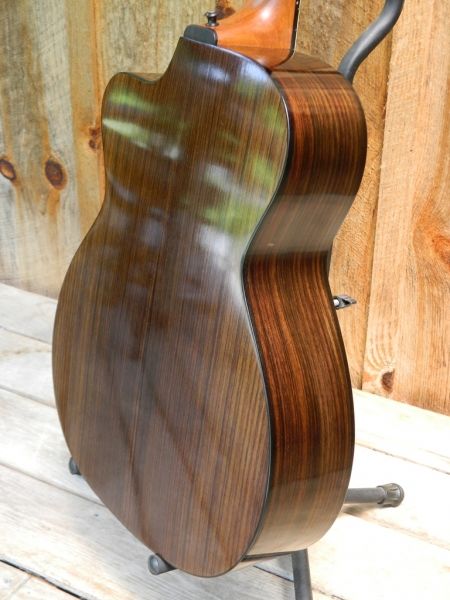

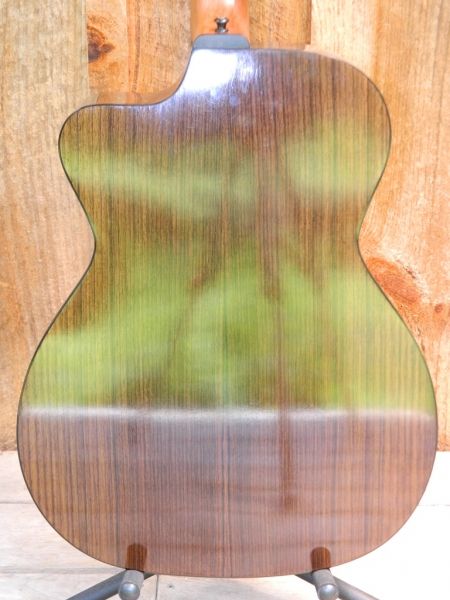

East Indian rosewood back

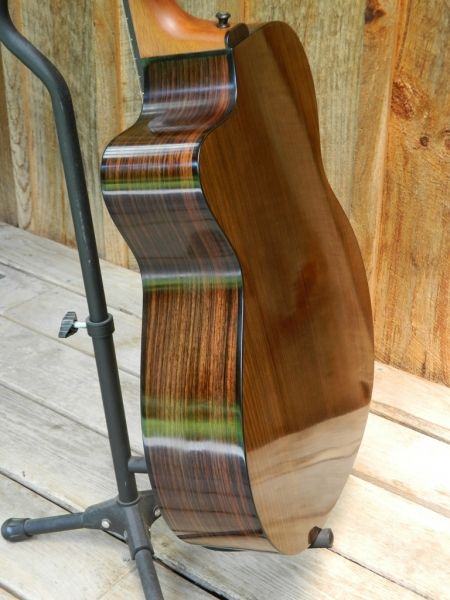

East Indian rosewood sides 1
East Indian rosewood sides 2

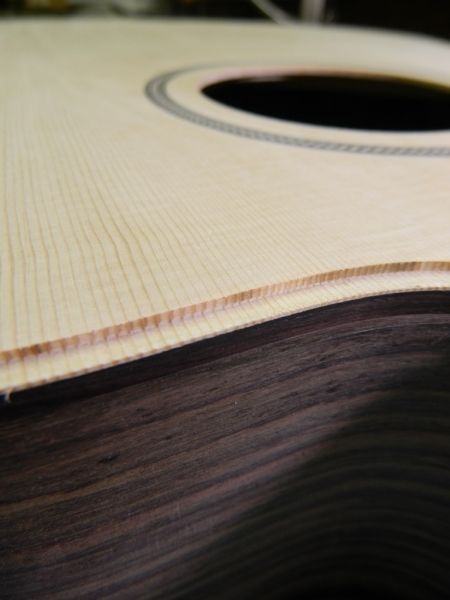

Ebony binding 1
Ebony binding 2
Venetian cutaway detail
2 mm Mother of Pearl side marker dots

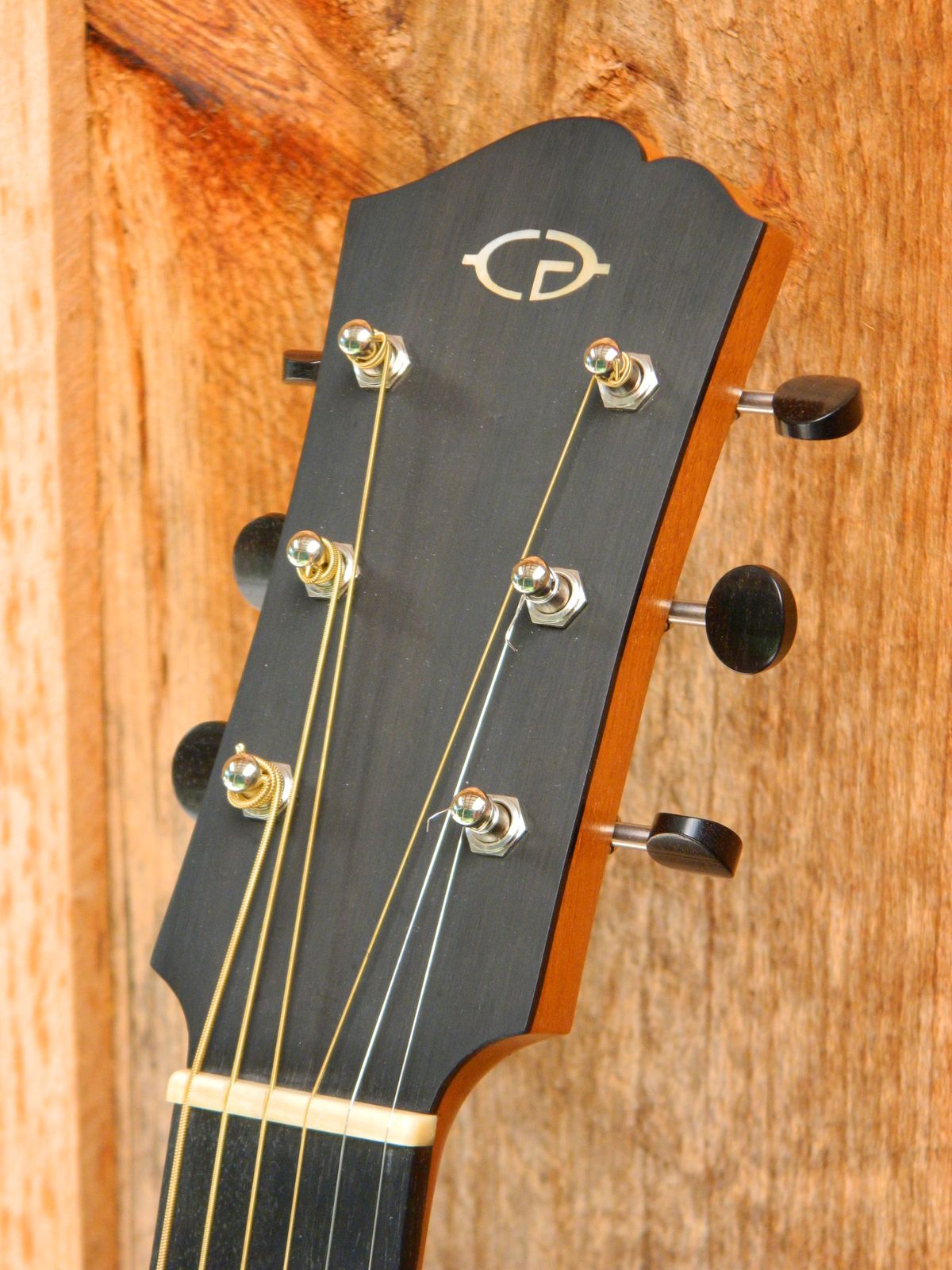

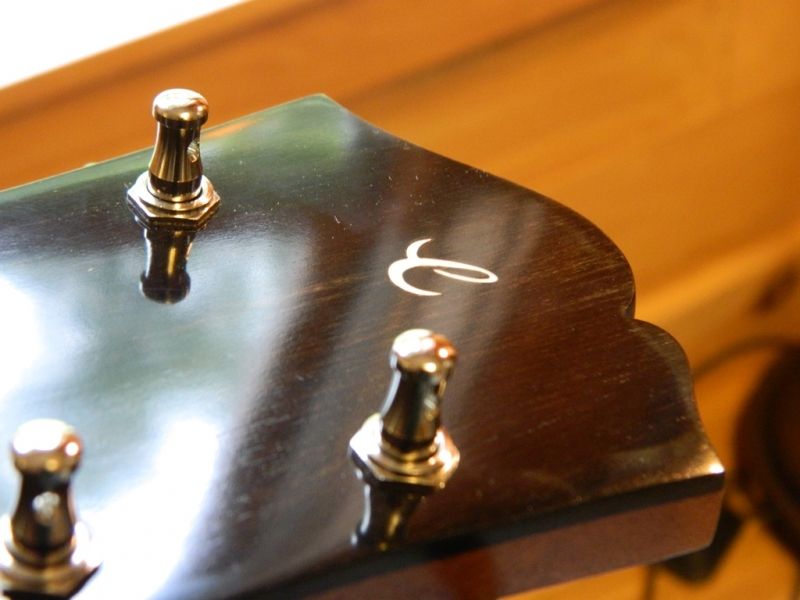

Ebony headplate with mother-of-pearl logo

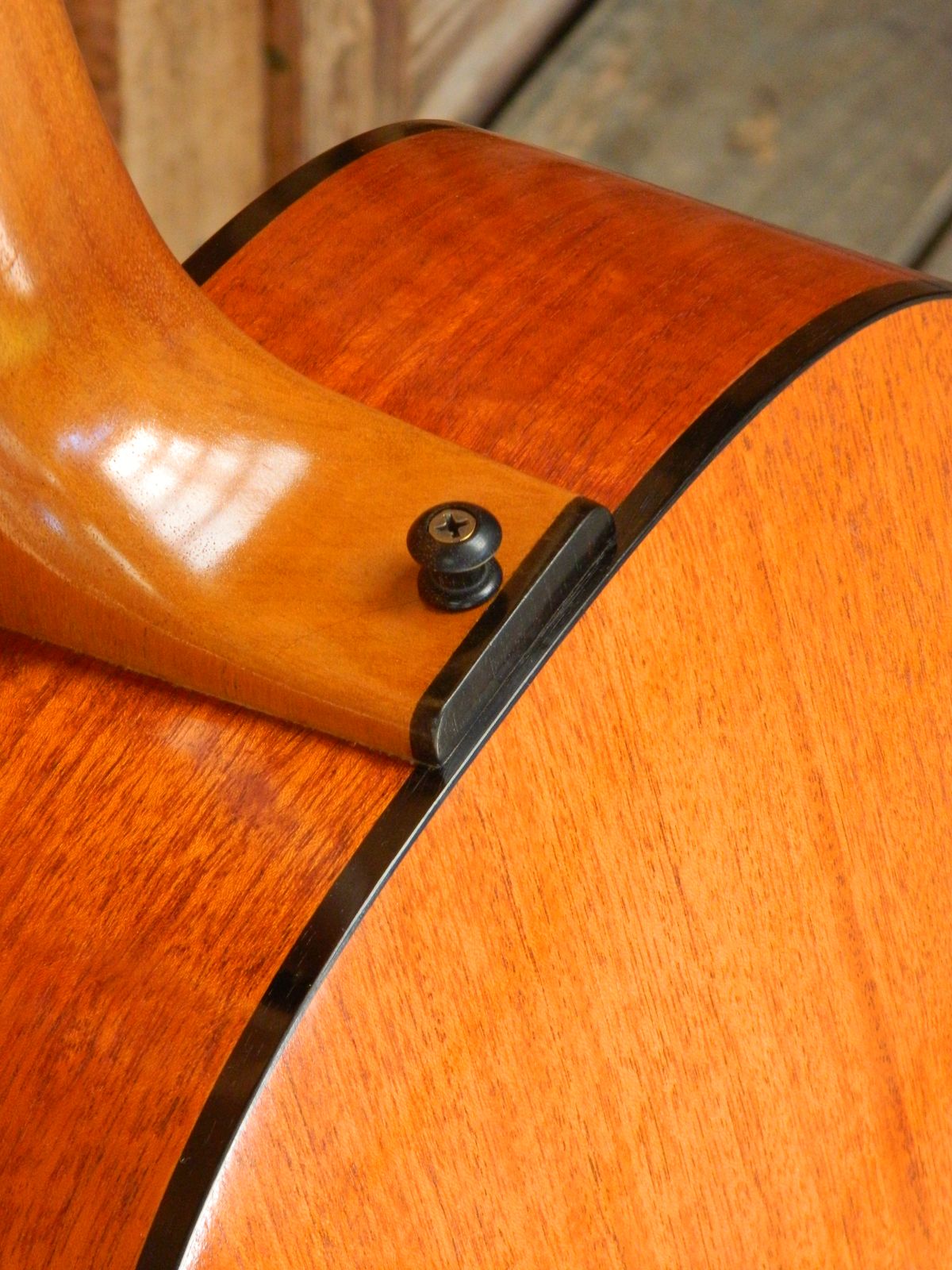

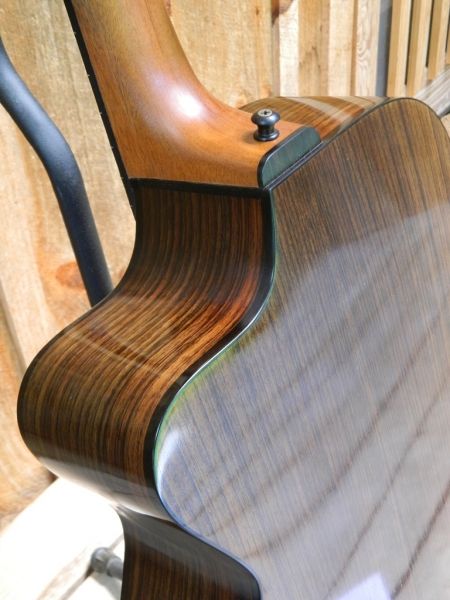

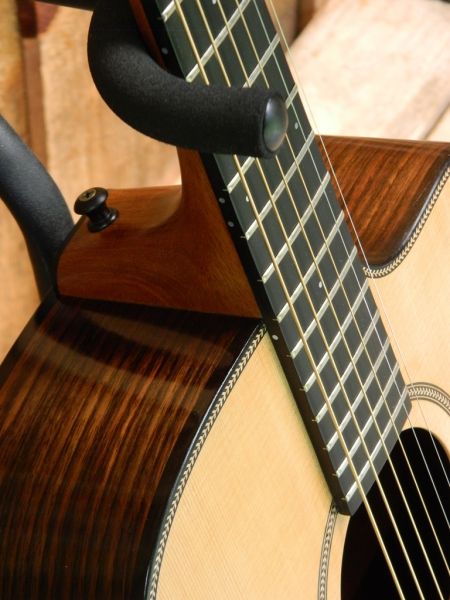

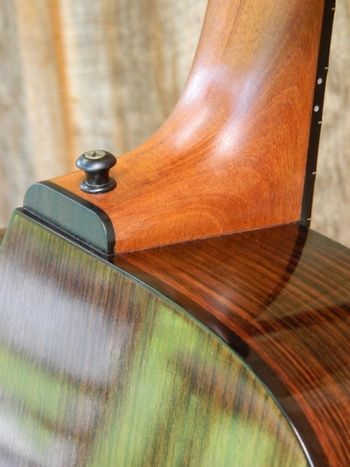

Ebony heel cap and strap button

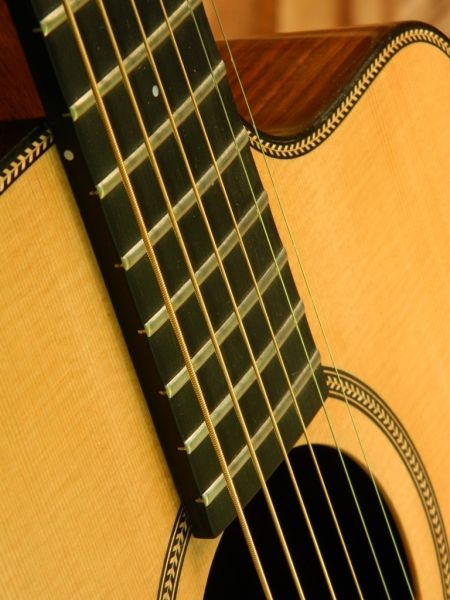

Herringbone purfling

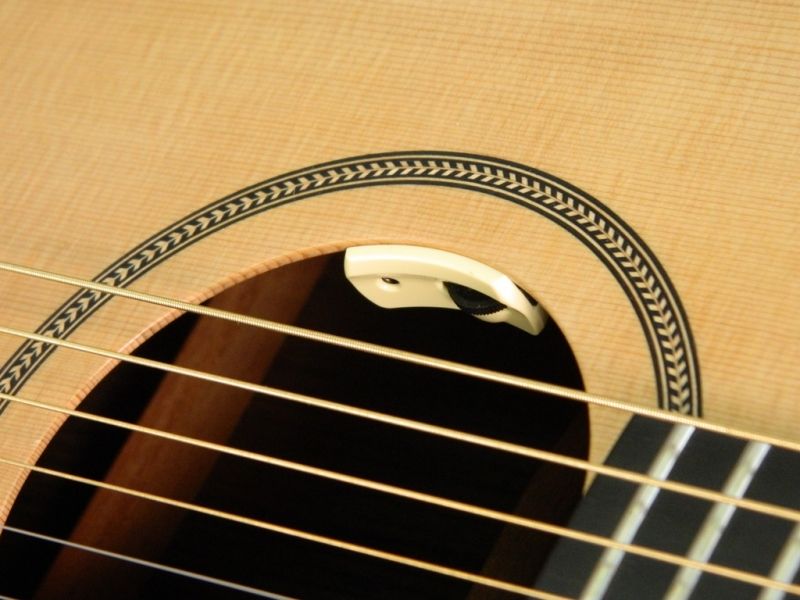

Discrete volume control for internal mic and undersaddle pickup
One piece sawn and hand carved Honduras mahogany neck

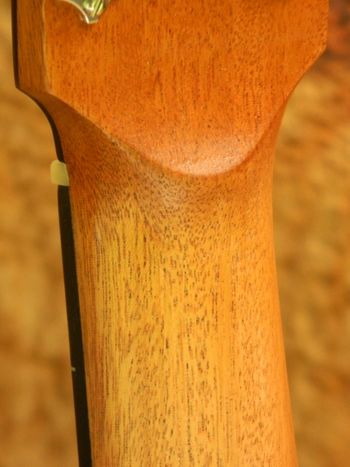

Hand carved volute detail

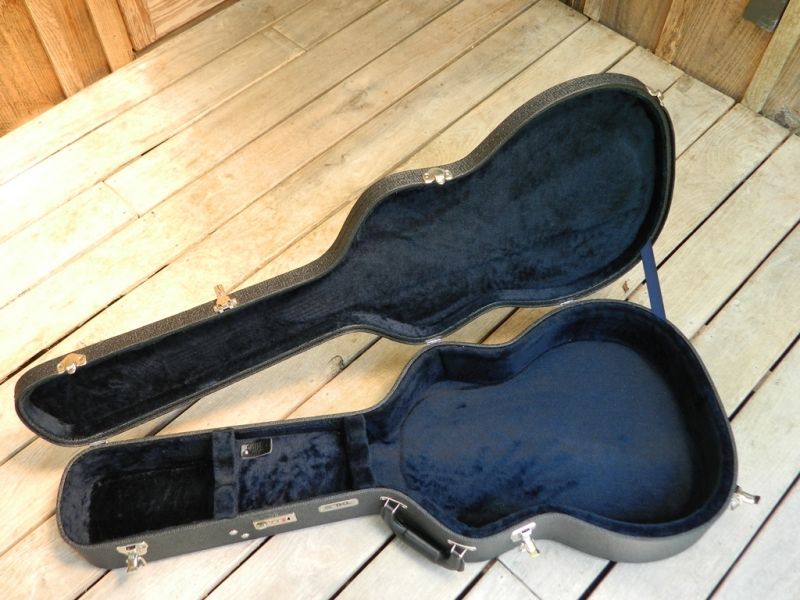

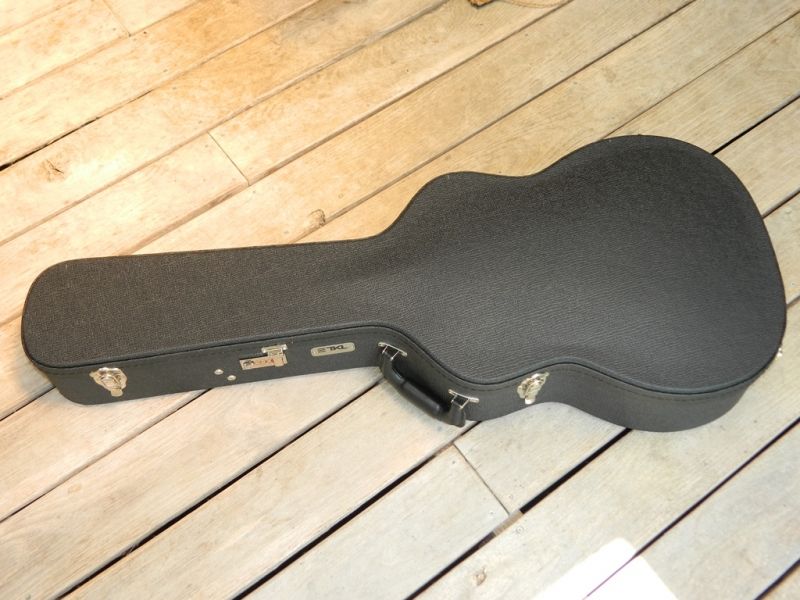

TKL 25th Anniversary hardshell case

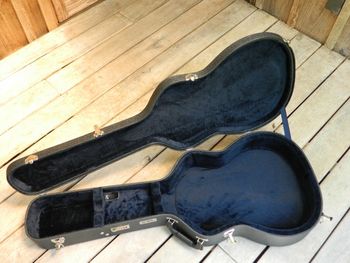

TKL case- Made in Canada. Not for cats.
